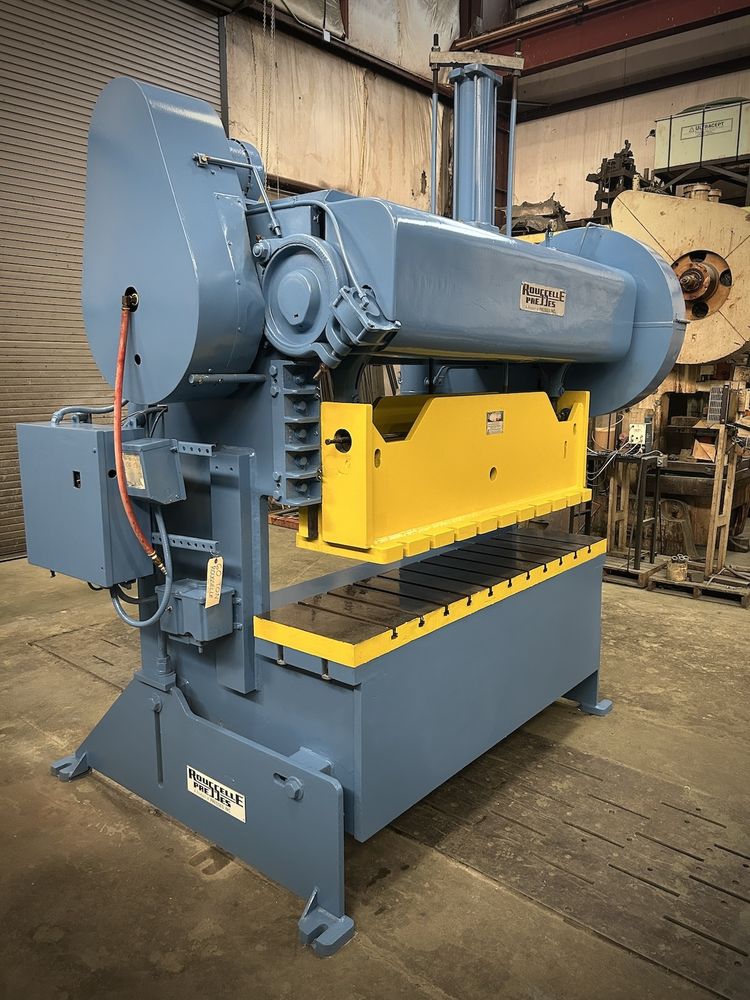

Rousselle 6B76-3 Press 60 ton

Rousselle 6B76-3 Press
Year: 1988

capacity 60 ton
stroke 4″
max shut height to bed 10.5″ sdau
bed area 76″ x 18″ (rl x fb)
speed 50 spm
slide adjustment 3″ manual
slide area 63″ x 16″ (rl x fb)
bolster plate 2.75″ h x 76″ rl x 18″ fb
distance between uprights 69″
distance floor to bed 34.5″
clutch rousselle air clutch & brake
electrics 5 hp 1750 rpm 480v-3-60 motor & rousselle plc press control. will include new cieco 1100r4 for reconditioned price.
approx dimensions 124″ h x 96″ rl x 75″ fb
approx weight 11,000 lbs

Equipped With
air counterbalance, lubrication pump, floor standing
single back geared design, cast iron frame
