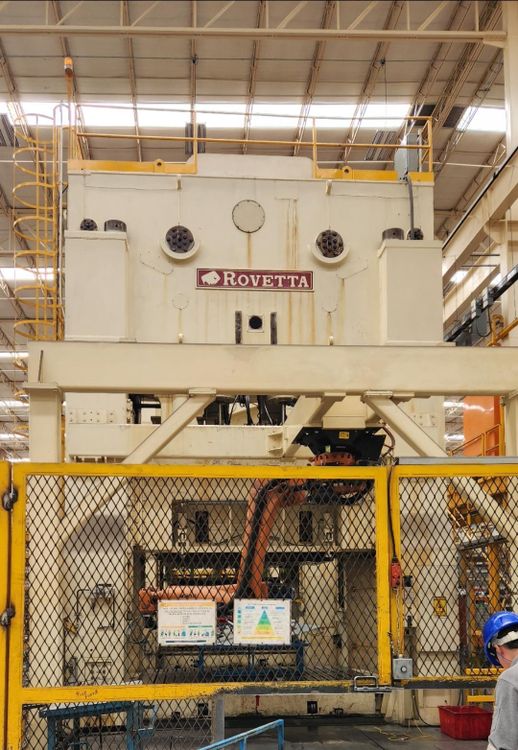

Rovetta D2-700-450-138-91/LD 700 ton
AMERICA North (USA-Canada-Mexico)
ROVETTA D2-700-450-138-91/LD
Year: 1987
Capacity: 700 tons (inner at 1/2 in ABDC)
Capacity: 450 tons (outer at 1/4 in ABDC)
Bed Area Inner: 3505 x 2311 mm
Bed Area Outer: 2794 x 1676 mm
Bolster Area: 3505 x 2311 mm
Stroke Inner: 965 mm
Stroke Outer: 685 mm
Slide Adjustment: 609 mm (inner and outer)
Shut Height over Bed Inner (SDAU): 3505 mm
Shut Height over Bed Outer (SDAU): 2159 mm
Shut Height over Bolster Inner (SDAU): 1803 mm
Shut Height over Bolster Outer (SDAU): 1651 mm
T-Slots Length: 1828 mm
Strokes per Minute: 8–16 SPM
Main Motor Power: 110 kW
Number of Cushions: 3
Cushion Stroke: 279 mm
Scrap Through Bolster
Height Above Floor: 8966 mm
Number of Bolsters: 2
Bolster Type: Bi-directional rolling through window
Bolster Thickness: 20 inches
Top Plate: T-slotted with 1-inch slots
Bolster Clamps Included
Approximate Total Weight: 450,000 kg (with 1 slide and 1 rolling bolster)
Standard Press Controls
Control Modes: Inch, single, continuous
Emergency Stop and Palm-Button Circuits
Color Touchscreen
One Palm-Button Stand
Four Palm-Button Stand Plugs
Eight Automation Outlets
Automation Control at Operator Panel
Semi-Automatic Counterbalance Control
Programmable by Recipe
Lubrication Control at Operator Panel
Tonnage Monitor
Die Lights
Two Ram Blocks
