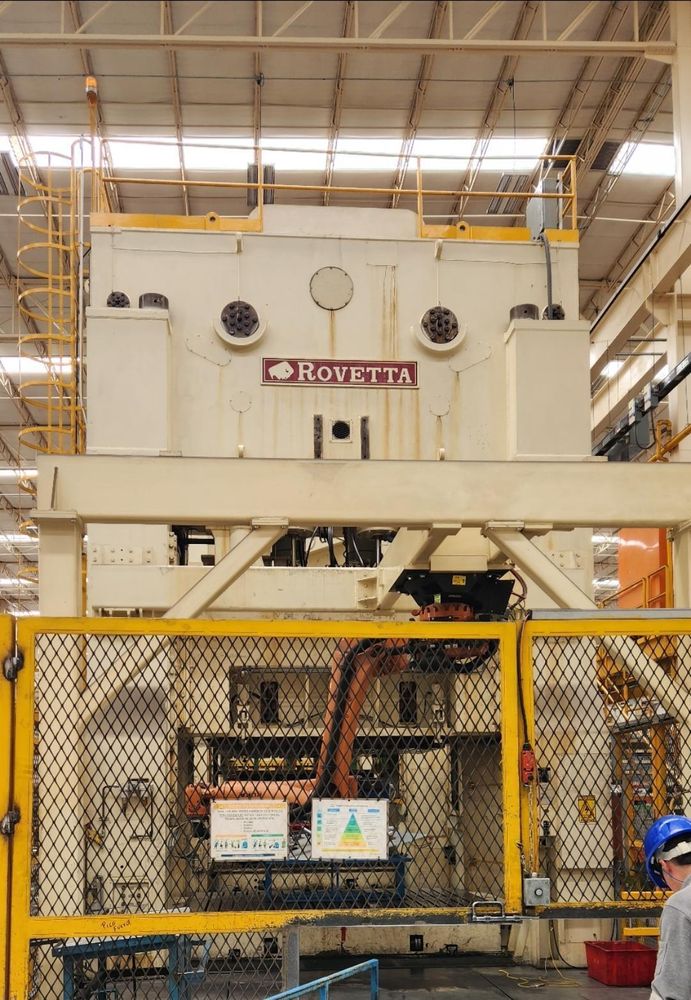

Rovetta D2-700-450-138-91/LD 700 Ton

Press capacity 700 tons inner at 1/2" ABDC
Press capacity 450 tons outer at 1/4" ABDC
Bed area inner 138" x 91"
Bed area outer 110" x 66"
Bolster area 138" x 91"
Stroke length inner 38"
Stroke length outer 27"
Slide adjustment inner 24"
Slide adjustment outer 24"
Shut height over bed inner 91"
Shut height over bed outer 85"
Shut height over bolster inner 71"
Shut height over bolster outer 65"
T-slots 72"
Strokes per minute 8–16
Main motor power 110 kW
Number of cushions 3
Cushion stroke 11"
Scrap evacuation through bolster
Height above floor 29.45 ft
Bolster thickness 20"
Top plate T-slotted with 1" slots
Bi-directional rolling bolsters through the window with T-track movement
Bolster clamps to press base
Approximate weight 450,000 kg
Standard press controls
Inch, single, and continuous run modes
Emergency stop circuit
Palm-button circuits
Color touchscreen
1 palm-button stand
4 palm-button stand plugs
8 outlets for external automation
Automation control at operator panel
Programmable counterbalance control
Lubrication control at operator panel
Tonnage monitor
Die lights
2 ram blocks
