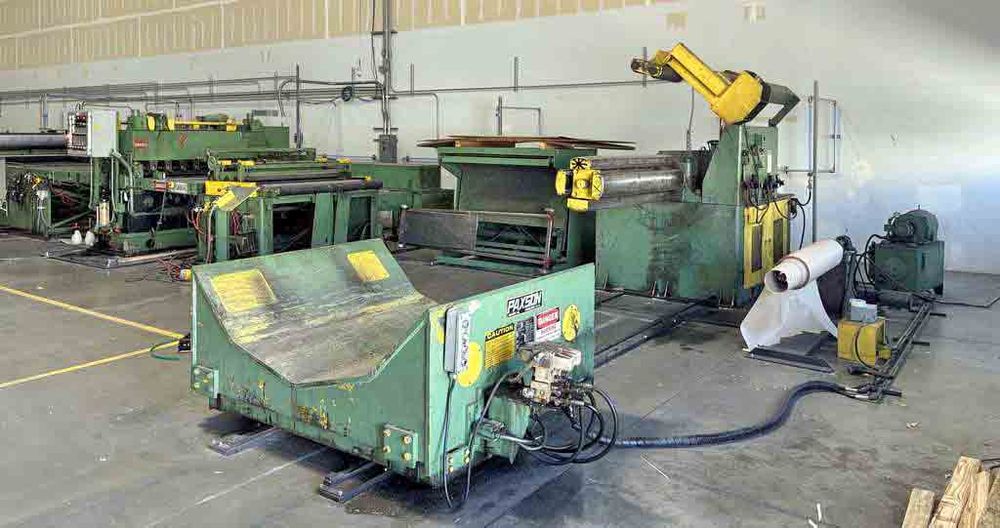

Rowe/Voss CUT TO LENGTH LINE

Coil Width Capacity: 60 in
Material Thickness Range: 0.019 - 0.139 in
Maximum Coil Weight: 20000 lb
Line Speed: 160 fpm

Paxson Coil Car
Above-Floor Type
Self-Contained Hydraulics
Hand Pendant Control

Rowe Uncoiler
Powered Expansion
Driven Mandrel
Overarm Hold-Down Roll

Paper Winder

Rowe Peeler

Rowe 5-Roll Straightener

Herr Voss Leveler
Model: 66/1.750-19/7-4HI-R.H.
19 Work Rolls (9 Over 8)
Roll Face Width: 66 in
Roll Diameter: 1.750 in
7 Backup Roll Flights
5 Motorized Backup Roll Flights
DC Drive Motor

Rowe Hump Table

Vinyl Applicator

Wysong High-Speed Shear
Bow-Tie Top Blade
Wichita Clutch and Brake
Drive Motor with Blower

Rowe Belt Runout Table and Gauge Head
2 Driven Belts

Rowe Stacker
4-Side Skate Wheel Drop Stacker
Powered Width Adjustment
Powered Length Adjustment
Side Discharge
Stacker Length: 20 ft

Installed and Running
