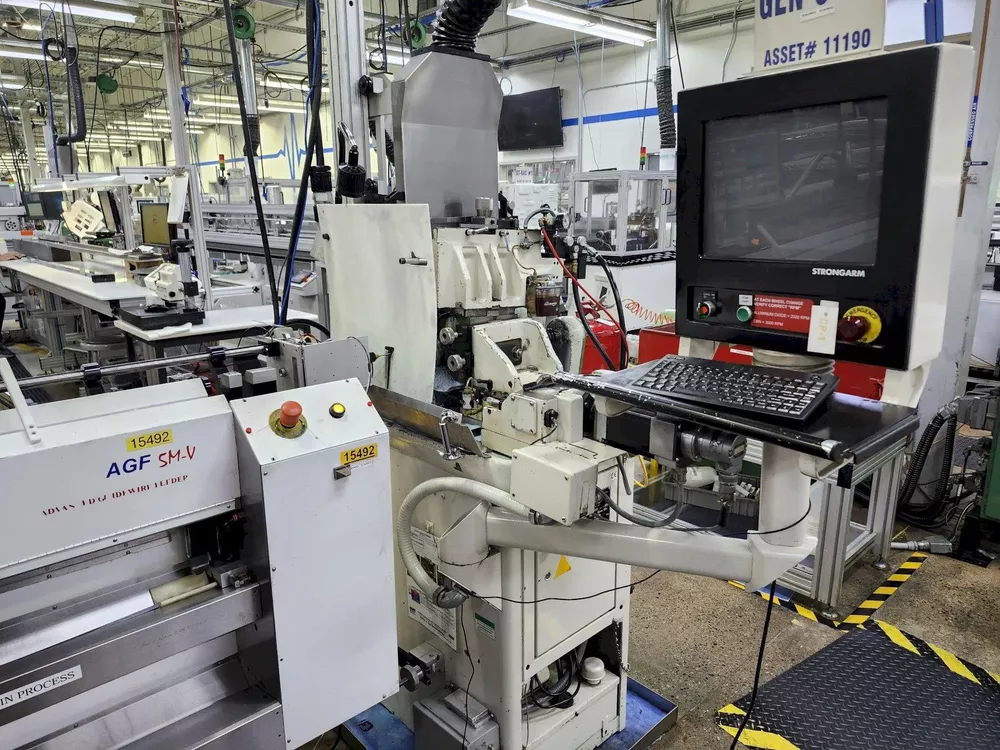

Royal Master GEN 5.1 (TG12x3)

Grinding Feed Rate in Guide Wire Mode 1.0" per second (25 mm/sec)
Wire Diameter .0001" to .250" (.02 mm to 6.35 mm)
Diameter Capabilities .0015" to .750"
Linear Slide Resolution 6349.9 Linear Counts per Inch
Linear Accuracies +/- .0005" (+/-.012 mm)
Diameter Resolution .000004" (.0001 mm)
Diameter Accuracies .00004" (.001 mm)
Grinding Wheel Diameter 12"
Inverter Speed Up to 9,000 SFPM
CNC Control Strongarm NT-Based Touch Screen Windows Control
Spindle Motor 7.5 HP
Machine Base TG-12x3 Hi-Accuracy System
Servo Motors
Ball Screw .00001" (.00025 mm) Ram Positioning
Glass Scale Feedback .000004" (.0001 mm)
Linear Actuator with Sony Magnetic Encoder
Levin Spindle System with 1C Collets
Operator Interface Windows NT Based Pentium Grade Computer with 15" Monitor
Touch Screen
2 - 7" Air Sensing Hydraulic Dressers Over Wheels
Extra Dresser
Servo Driven Over the Wheel Dressers
Servo Driven Infeed
Deep Bed Filter with Paper Filtration
Bijur Auto Lubrication System
Accu-Feed AGF 5M-V Fully Automated Wire Loader/Unloader
IBAR Sensor for Wire Detection
Spindle Load Meter
Misc. Spare Parts
Weight 2,300 lbs.
