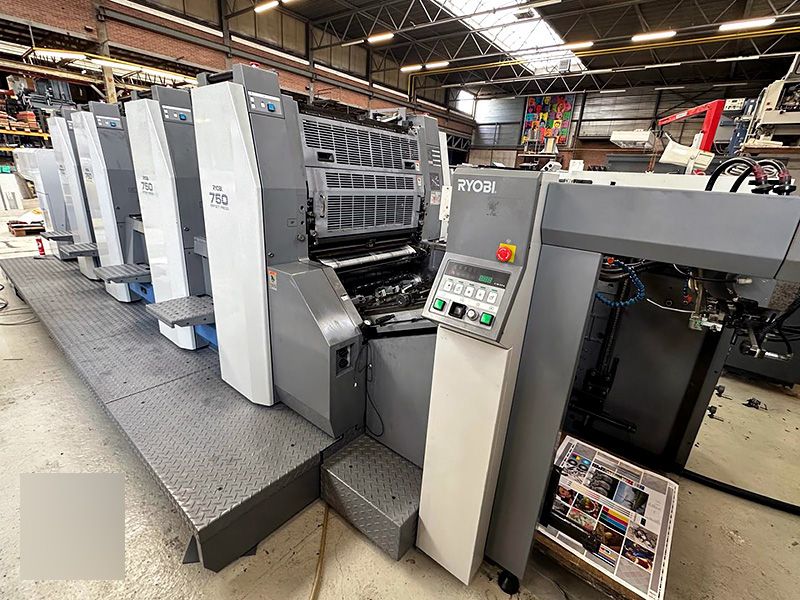

Ryobi 754P 788x600 mm

Equipment:
Cascade feeder
vacuum rotary head
antistatic balloons
alignment table with long vacuum tapes
vacuum automatic lateral alignment machine of the pulling type
emergency sheet stopper
skew, jam, and lateral sheet alignment sensors
air injection in the area of ​​the front stops
mechanical and ultrasonic double sheet sensors
single-stream inking apparatus with fast response time
19 ink rollers, including 4 roll-on rollers
Ryobi Program Inking computer-controlled paint supply
RYOBI-matic continuous humidifier
4 rollers, including 1 knurling roller
AAC (Aqua Automatic Control) automatic water film thickness maintenance system
RYOBI Semi-RPC semi-automatic die changer
automatic washing of ink apparatus, offset and printing cylinders
sheet turning mechanism with vacuum fixation of the sheet's trailing edge and smoothing pneumatic grippers
Ryobi PCS-G remote control (regulation of general and zonal paint supply and dampening; longitudinal, transverse and diagonal registration)
Ryobi PDS-E densitometer (automatic adjustment of ink unit settings)
high receiver Type 4-A
contactless overhead sheet guide and smoothing device
Grafix Digital digital anti-set-off powder spray system
70 million impressions

Max. sheet format 788x600 mm
Min. sheet format 279x200 mm (reversal printing 325x295 mm)
Max. printing format 765x545 mm
Sheet thickness 0.04…0.6 mm (reversal printing 0.04…0.4 mm)
Print speed 3'000…15'000 impressions/hour
Printing plate dimensions (SW type) 745x605 mm
Feeder pile height 800 mm
Delivery pile height 925 mm
Overall dimensions 7'696x3'000×1'870 mm
Net weight 19 t
