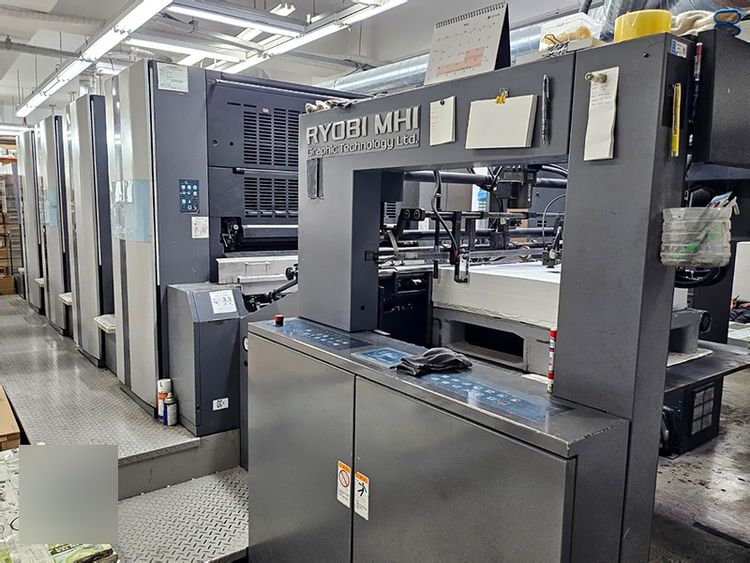

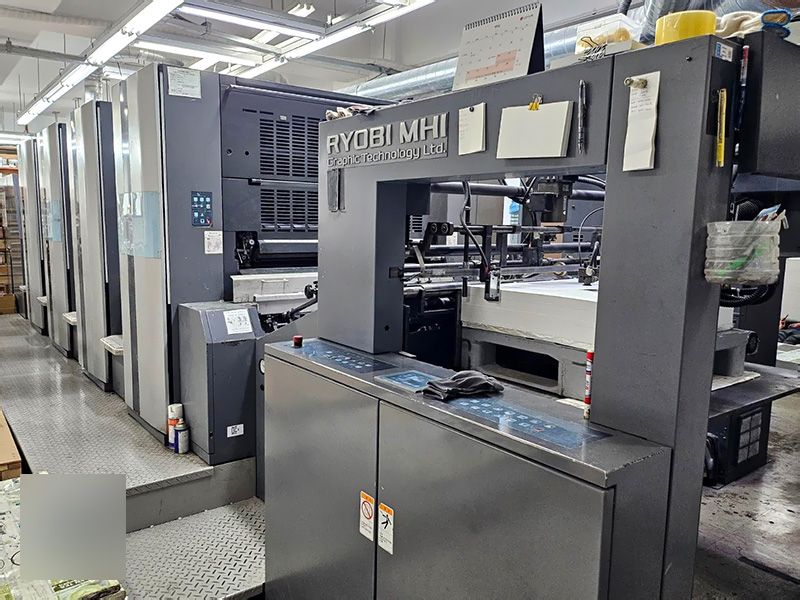

Ryobi V3000LS-4 720×1'020 mm

The 4-color Diamond V3000 series press
Equipment:
sheet format pre-setting system on the feeder and delivery vacuum belts on the feed table pneumatic side stacking device for slowing down the sheet feed speed remote control:
- position of the separator
- side guide
- brushes / rollers of the feeder
- vacuum brake wheel (positioning and air flow)
- side pushers
mechanical, photoelectric and ultrasonic double-sheet sensors
High-speed print start system sheet movement control and sheet alignment device three-way remotely controlled register (axial, radial, diagonal)
Proprietary multi-mode dampening system Mitsubishi ( AD , semi-AD , ITD mode )
Automatic pre-setting of the ink layer high-precision ink registers active stabilized ink supply system
pre-setting the printing pressure Intelligent Press Control II (IPC II)
Console automatic plate changing system high delivery of graphite dust

252 million copies
Maximum sheet format 720×1'020 mm (28″x40″)
Minimum format 360×540 mm
Maximum printing format 710×1'020 mm
Printing material 0.04 - 0.6 mm
Speed ​​up to 16'000 sheets/hour
Feeder stack height 1'100 mm
Delivery stack height 1'050 mm
