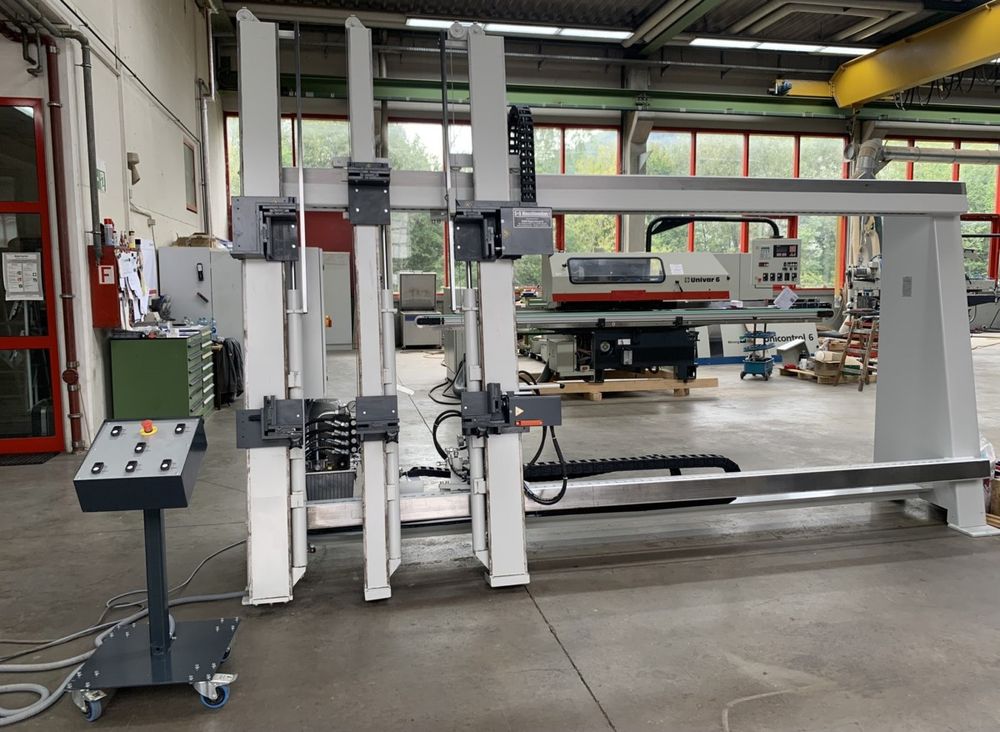

S&S Bavaria 2000 L

Window frame and sash press
The press will be partially reconditioned at our warehouse prior to pickup.

Technical specifications:
- Working dimensions: 4000 mm x 2550 mm (length x height)
- Abutment and pressure plate depth: 100 mm
- Automatic press cycle for "mortise and tenon" corner joints
- hand control for manual pressing mode
- 1 central pressure beam (accommodates heights up to 2550* mm)
- 1 transverse pressure unit
- 1 shut-off valve for the 3rd vertical cylinder
- 1 shut-off valve for the upper horizontal cylinder
- 3 controls for angled window processing (vertical cylinders)
- 3 attachable pivoting pressure plates for pressing angles up to 60 degrees
- 2 extensions for pivoting pressure plates (for triangular/pointed windows)
- All pressure plates and abutments faced with plastic
- Control cabinet located on the inside of the left base leg
- Press can be completely disassembled if required (price on request!)
- Finish: RAL 7035 Light Grey and RAL 7016 Anthracite Grey
