S&T TNL-120V 39.37

Reference #32141

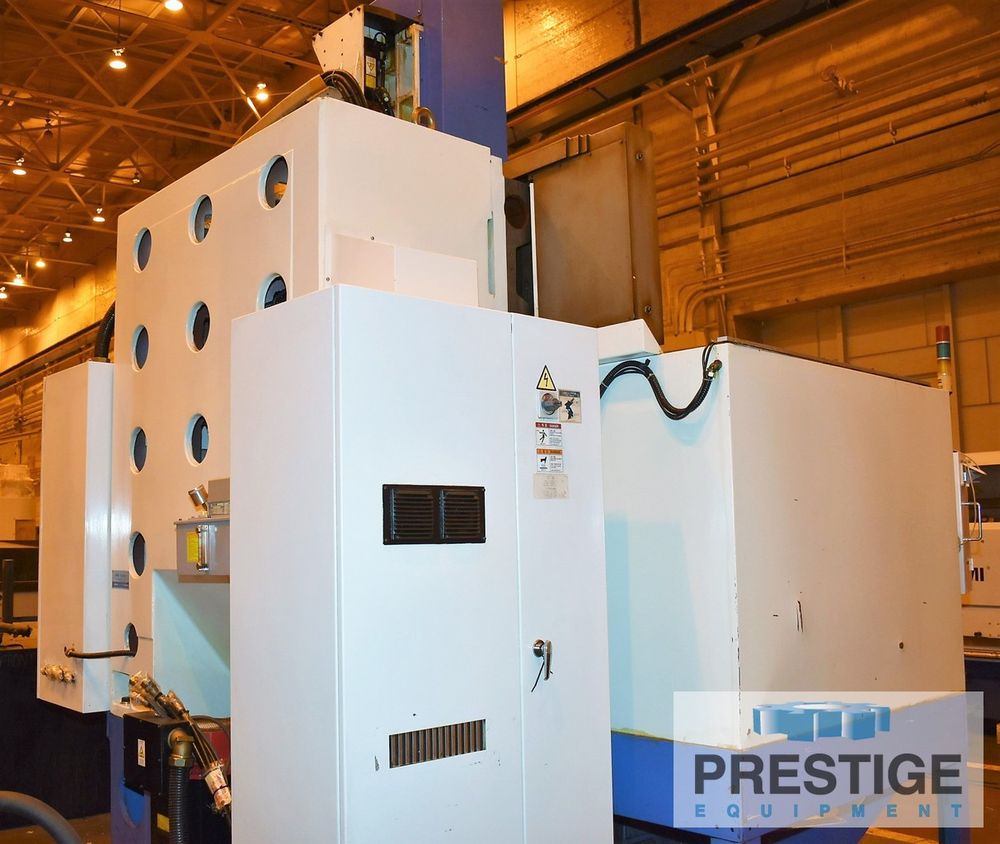

S&T Dynamics 40" TNL-120V CNC Vertical Turret Lathe

FEATURES:
Fanuc 0i-TB CNC Control
Sauter 6-Position Turret

SPECIFICATION:
Table Diameter ........................ 39.37"
Maximum Swing ......................... 61.02"
Maximum Turning Diameter .............. 43.30"
Maximum Turning Height ................ 35.03"
X-Axis Traverse ....................... -7.87"/+31.10"
Z-Axis Traverse ....................... 29.13"
Maximum Load On Table ................. 8,800 Lbs
Feed Rate ............................. 0.04-197 IPM
Rapid Traverse ........................ 393 IPM
Spindle Speeds ........................ 1-400 RPM
Spindle Motor ......................... 40/50 HP

EQUIPPED WITH:
Fanuc 0i-TB CNC Control
Sauter 6-Position Turret
39.37" Autoblok 3-Jaw Hydraulic Power Chuck
Lubrication System
Splash Guard
