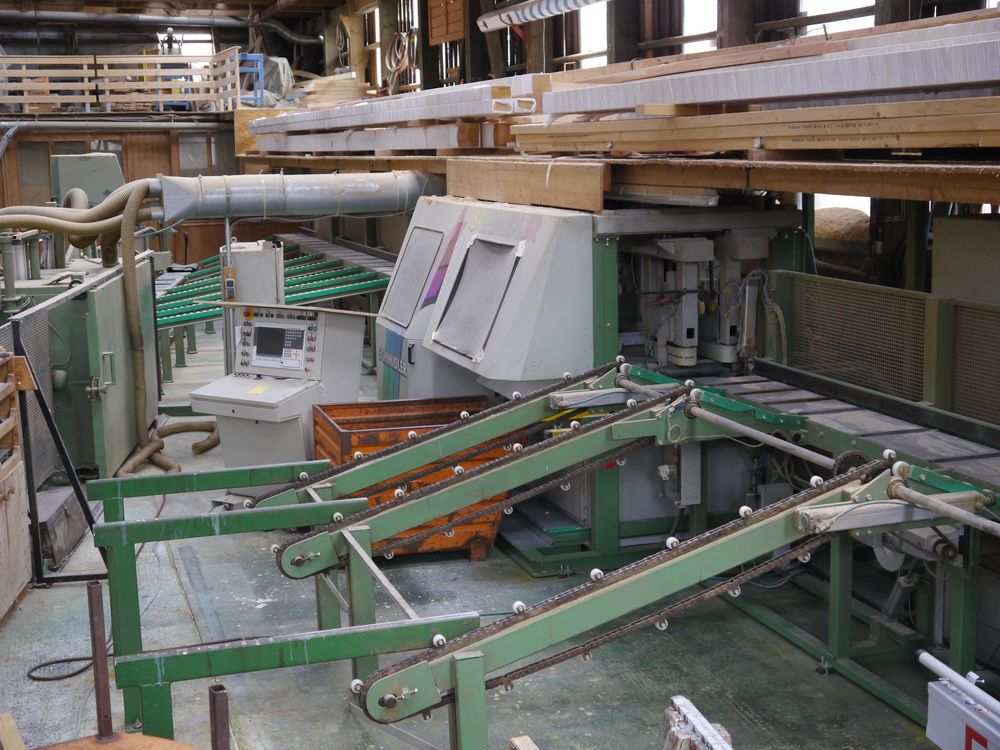

S4 Joinery system with planer

Schmidler S4 joinery system with planer
- 4-strand cross-feed conveyor (sloping)
- Infeed roller conveyor
- Edger integrated into infeed roller conveyor
- Electronically controlled under-table pivoting miter saw with a saw blade diameter of 710 mm; rotation angle of 360 degrees; Inclination 0-65 degrees
- Scrap wood pusher
- Universal milling machine including end mill and dovetail cutter head
- Horizontal drilling unit – rafter nail drilling unit
- Vertical drilling unit
- Profiling milling unit, vertically positioned below, for inner radii
- Driven outfeed roller conveyor
- Pneumatic outfeed guide
- Transport and measuring system
- Control system including color screen
- Maximum component dimensions: height 300 mm; width 400 mm; length approx. 12,000 mm
