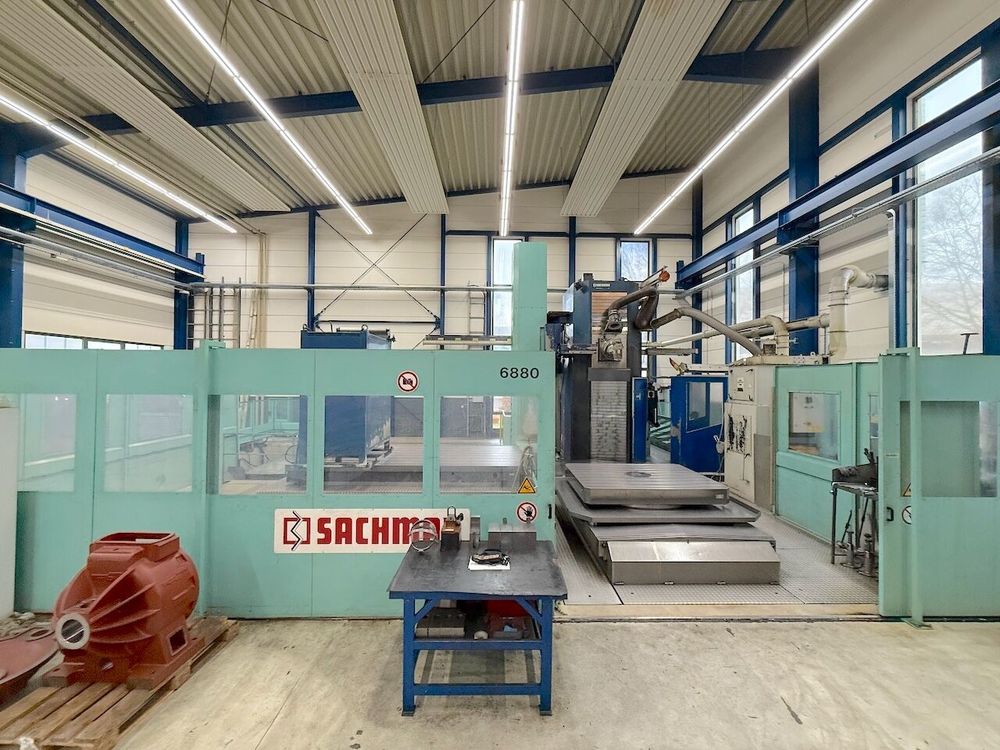

Sachman MP212HS 5000 rpm

X-axis travel: 6000 mm
Y-axis travel: 2000 mm
Z-axis travel: 1400 mm
V-axis travel: 1500 mm
B-axis resolution: 0.001°
B-axis rotation speed: 3 rpm
Press force:
CNC milling machine
Ram section: 500 x 500 mm
Spindle power (S1/S6/S4): 37 / 46 / 56 kW
Spindle speed: 5–5000 rpm
Spindle torque (S1): 1195 Nm
Spindle taper: ISO50
Rapid traverse X-axis: 30 m/min
Rapid traverse Y-axis: 30 m/min
Rapid traverse Z-axis: 30 m/min
Rapid traverse B-axis: 3 rpm
Tool magazine capacity: 80 positions
Max tool diameter: 125 mm
Max tool diameter with adjacent pockets free: 250 mm
Max tool length: 600 mm
Max tool weight: 35 kg
Tool interface: ISO50
Spindle orientation: horizontal / vertical
Clamping plate size: 4000 x 200 x 300 mm
T-slots: 8
Table surface: 2000 x 1600 mm
Table travel: 1500 mm
Table load capacity: 15000 kg
Head type: KOSMO3
Head spindle taper: ISO50 DIN69871
A-axis indexing: 0.02°
C-axis indexing: 0.02°
Max head torque: 1195 Nm
Max head speed: 5000 rpm
Max head power: 37 kW
Coolant through spindle: 40 bar
Spindle extension head size: Ø165 x 600 mm
Extension head speed: 2000 rpm
Coolant: external
Installed power: 100 kW
Machine weight: 69000 kg
Machine dimensions: 14500 x 11000 x 5013 mm
High-pressure coolant: 40 bar, 50 l/min
Filtration system capacity: 1320 l
Workpiece probe: Renishaw MP60
Full enclosure
Chip conveyor
Fume extractor
