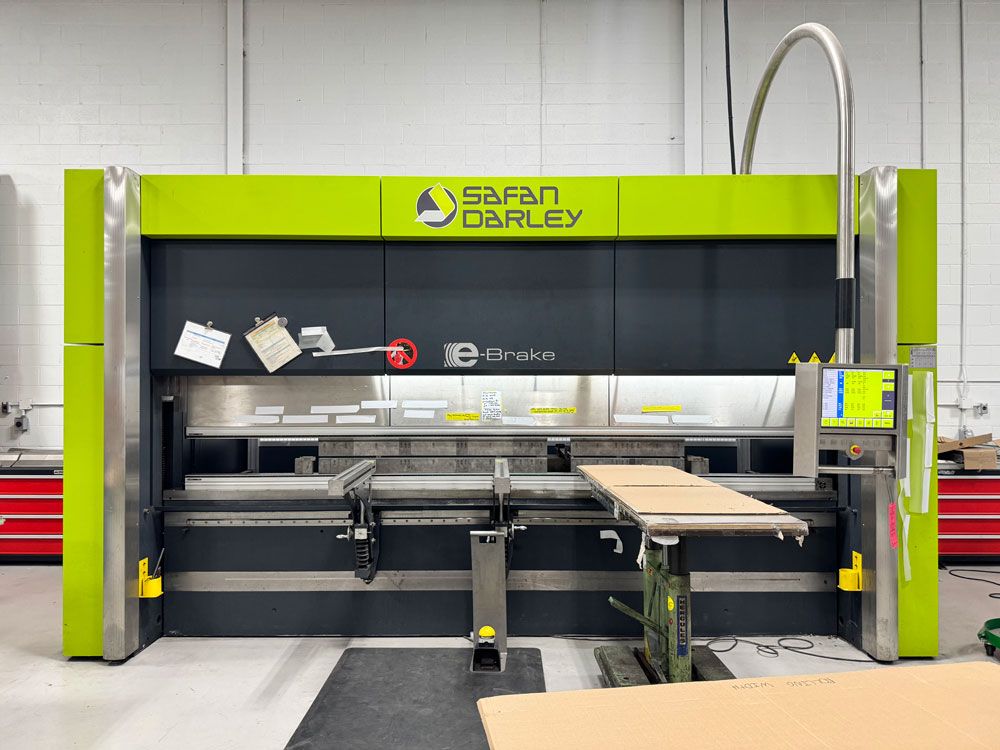

SafanDarley E-BRAKE 200-4100 220 TON

Electric Press Brake
Capacity 220 TON
Overall bending length 160”
Distance between housings 160”
Stroke of ram 11.8”
Open daylight 16.31”
Advance speed 178 IPM
Pressing speed 23 IPM
Return speed 178 IPM
Maximum travel of back gauge 39.4”
Table width 3”
Floor to top of bed 40 1/2”
Control SafanDarley EC20, Windows based
Eight CNC axis Y1
Eight CNC axis Y2
Eight CNC axis X1
Eight CNC axis X2
Eight CNC axis R1
Eight CNC axis R2
Eight CNC axis Z1
Eight CNC axis Z2
Wila NS Hydraulic upper & lower clamping/crowning premium
Physical rear guarding
2 front support arms on lateral guides with hand crank adjustment
Integrated safety light curtains with single and double beam break feature
Motor 30 HP
Weight 37,000 LBS approx.
Dimensions 215″ × 86″ × 118″
