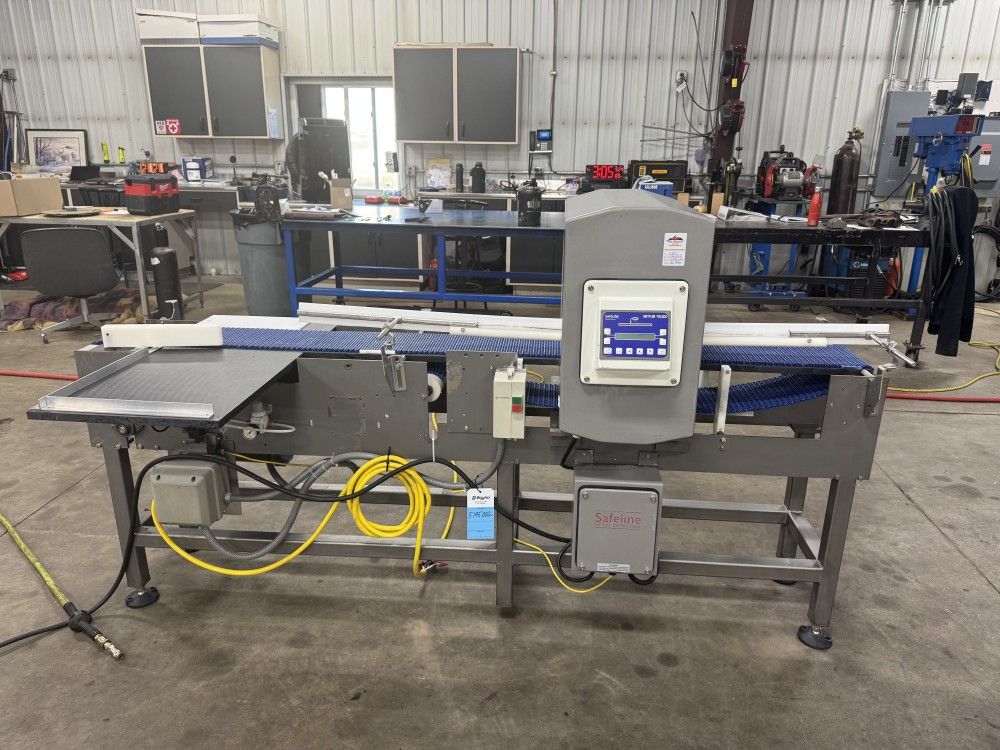

Mettler Toledo, Safeline R-V2 SS, Metal Detector System

Metal detector system is built for precise inline metal detection
in food and industrial processing applications.
Outfitted with the Signature Touch 300 head, painted washdown conveyor,
and Schneider Electric variable speed controls,
this unit offers reliable detection and hygienic operation.

Key Features & Specifications
Metal Detector Head
Manufacturer: Mettler Toledo
Model: R-V2 SS (Signature Touch 300)
M/C Model: 303
Version 2.30
Aperture: 10 in. wide x 13 7/8 in. tall
Conveyor clearance: 12 3/4 inches
Alarm with non-gated reject system

Conveyor System
Model:
Belt: Blue plastic interlocking
Dimensions: 91 in. long x 8 in. wide x 32 in. tall
Painted tubular frame
Adjustable height

Controls & Electronics
Control panel
Start and stop
Washdown-rated motor

Electrical Requirements
230 Volt, 3 Phase, 60 Hz

Performance Verification (Valid Through August 2025)
Unit was shop tested and verified using the following sample sizes:
Ferrous: 1.5 mm
Non-Ferrous: 1.5 mm
Stainless Steel 316: 1.2 mm

Overall Dimensions & Weight
91 in. long x 38 in. wide x 52 in. tall
Approximate weight: 536 lbs
