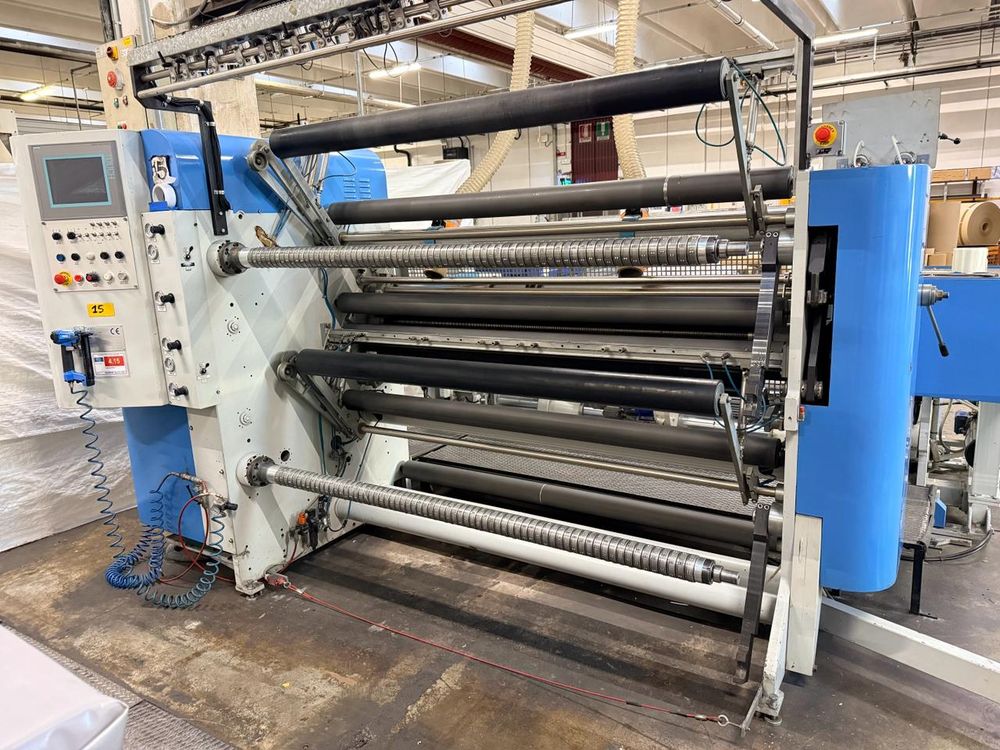

Sage TB8 SB 1650 mm

DOUBLE-SHAFT CUTTER
1.04 Typology Twin camshaft
1.05 Belt Width: 1650 mm
1.06 Max diameter of winder coils 800 mm
1.07 Trim system Yes
1.08 Maximum diameter of unwinding reels 1200 mm
1.09 Mechanical speed (m/min) 400 m/1'
1.10 Power supply 3 x 400V, 50Hz
1.13 Cutting group Circular knives + multi-cutting sockets with 5 mm pitch
Number of knives 36
Minimum cut 30 mm
Trimmings aspirator
1.14 Compressed air supply Max 6-8 bar
1.15 Material Paper from 30 to 500 gsm
1.16 Web guides Yes
1.17 Unloading coils With unloading turret
1.18 Availability Immediate
1.19 More information Machine condition: Good – line in production
