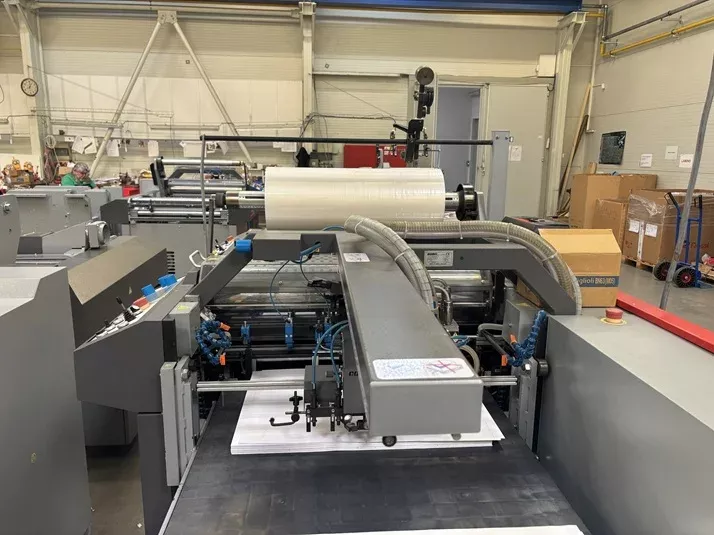

Sagitta 76 Hot Knife Laminating Machine

Industrial automatic laminator designed for laminating medium to large runs up to B1 format.
A robust and reliable machine suitable for both printing houses and laminating services.
The laminator is ready for non-stop operation!
Machine has been factory-inspected!

TECHNICAL PARAMETERS :
Min. format: 300 x 220 mm
Max. format: 760 x 1120 mm
Max. paper stack height: 68 cm
Paper weight: 115-600 g/m²
Operating speed: up to 40 m/min
Max. recommended operating temperature: 135°C
Lamination cylinder warm-up time (25-100°C) approx. 5 min
Overlap accuracy (at constant speed) +/- 1 mm
Machine dimensions (L x W x H): 5040 x 1570 x 1320 mm

Machine equipment:
Automatic application – pallet feeding
Automatic overlap control system
Laminating cylinder heated by a 5-zone jacket heater system
PUR pressure cylinder
Pneumatic film application sleeve
Automatic sheet separation using a built-in perforator and rotary knife
Pneumatic sheet separation system
High-stack pallet delivery
