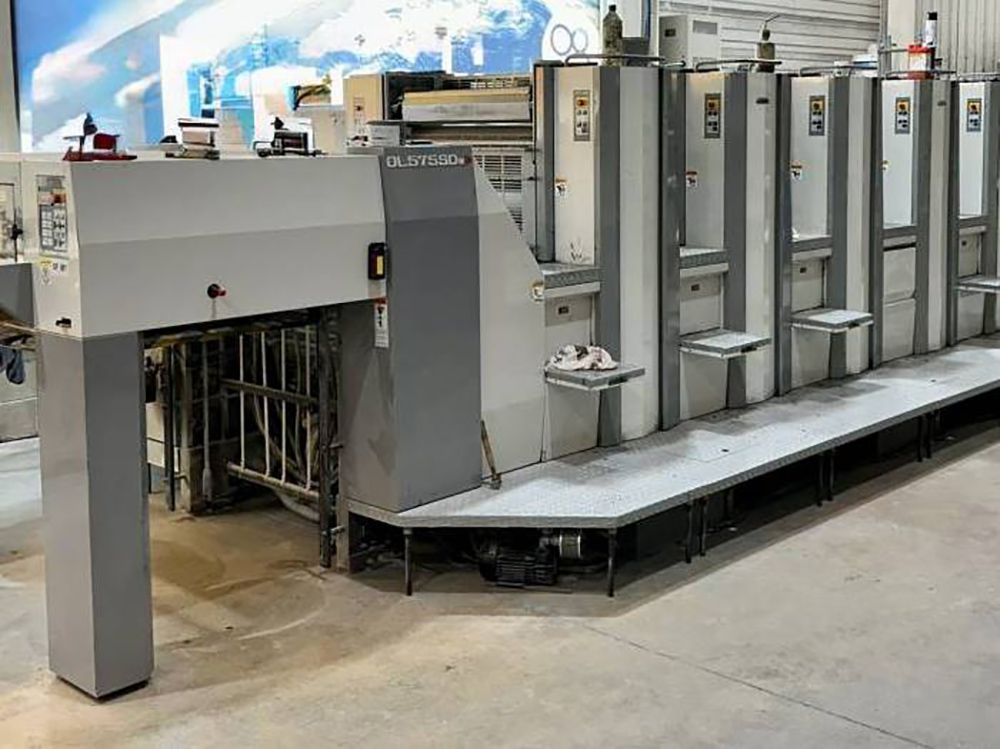

Sakurai Oliver 575 SDW 5 600 x 790 mm

Sheetfed offset machine
Current State: In production
Colors: 5
Impress.Count: 70 mio
Extras: Autoplate, Digital Controls, Touch-screen Control, Autosize, Dryer
Maximum Speed: 15,000 sheets/hour (s/h)
Configuration: Straight machine (no perfector) with high pile delivery
Maximum Paper Size: 600 x 790 mm (approx. 23.6 x 31.1 in)
Minimum Paper Size: 260 x 400 mm (approx. 10.2 x 15.7 in)
Maximum Print Area: 585 x 765 mm
Paper Thickness Range: 0.04–0.6 mm (0.0016–0.024 in)
Plate Size: 660 x 770 mm
Blanket Size: 1.90 mm thickness
Control Console: SCC Typo II Control Console with Touch Monitor

Automation:
SAPC (Sakurai Automatic Plate Change)
SAS (Sakurai Auto Set) - Sheet size and thickness preset device
Automatic roller, blanket, and impression cylinder wash-up
Dampening: Olivermatic continuous dampening system
Inking/Register: CIP3 (Pre-press data integration), Plate cocking
Drying/Powder: IR Dryer (Baldwin Graphiset) and Grafix Digital 3000 Powder Sprayer
Other: Double diameter impression/transfer cylinders, SIS (Sakurai Information System)
Weight: ~22,500 – 23,000 Kg
Dimensions (LxWxH): ~8.80 – 8.90 m x 3.20 m x 1.95 m
Power Requirement: ~46 Kw
