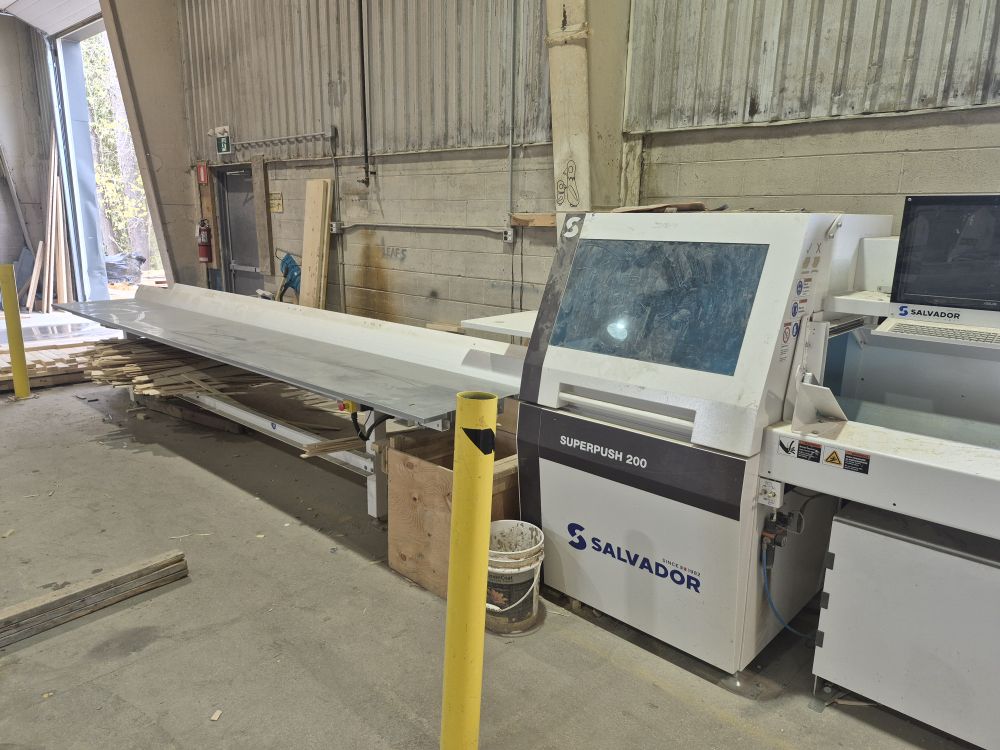

Salvador Superpush 200

Automatic Optimizing Crosscut Saw
Electrical:
Phase: 3 Phase
Supply Voltage: 460V
Maximum Installed Power: 6.5 kW
Blade Motor Power: 5.5 kW

Saw Blade:
Blade Diameter: 500 mm
Optional Blade Diameter: 550 mm
Arbor Diameter: 35 mm
Blade Thickness: 4.2 mm
Optional Blade Thickness: 4.5 mm
Blade Speed: 2,880 RPM

Cutting Capacity:
Material Capacity: Approximately 2" x 4" up to 6" x 12"
Machine Configured to Load Material up to 16 Feet
Minimum Workpiece Length: 500 mm
Minimum Workpiece Cross Section: 30 x 15 mm
Cutting Cycle Time: 0.3 Seconds

Feed System
Maximum Pusher Feed Speed: 60 m/min
Maximum Pusher Plate Size: 100 x 120 mm

Pneumatic Requirements
Operating Pressure: 600–800 kPa (6–8 Bar)
Connection: 3/8" Quick Connectors

Dust Collection Requirements
Extraction Capacity: 1,800–2,000 m3/hr
Upper Extraction Port: 100 mm
Lower Extraction Port: 120 mm

Machine Dimensions :
Machine Footprint:
Overall Line Dimensions: 8,870 x 1,481 x 1,720 mm
Open Height: 2,045 mm

Loading Area:
Loading / Marking Table Height: 1,000 mm

Weight :
Main Unit Weight: 950 kg
Maximum Supporting Surface Load: 968 kg

Condition:
Under Power
Available Immediately
Approximately 1,627 Operating Hours
Very Good Condition
Manuals Included
