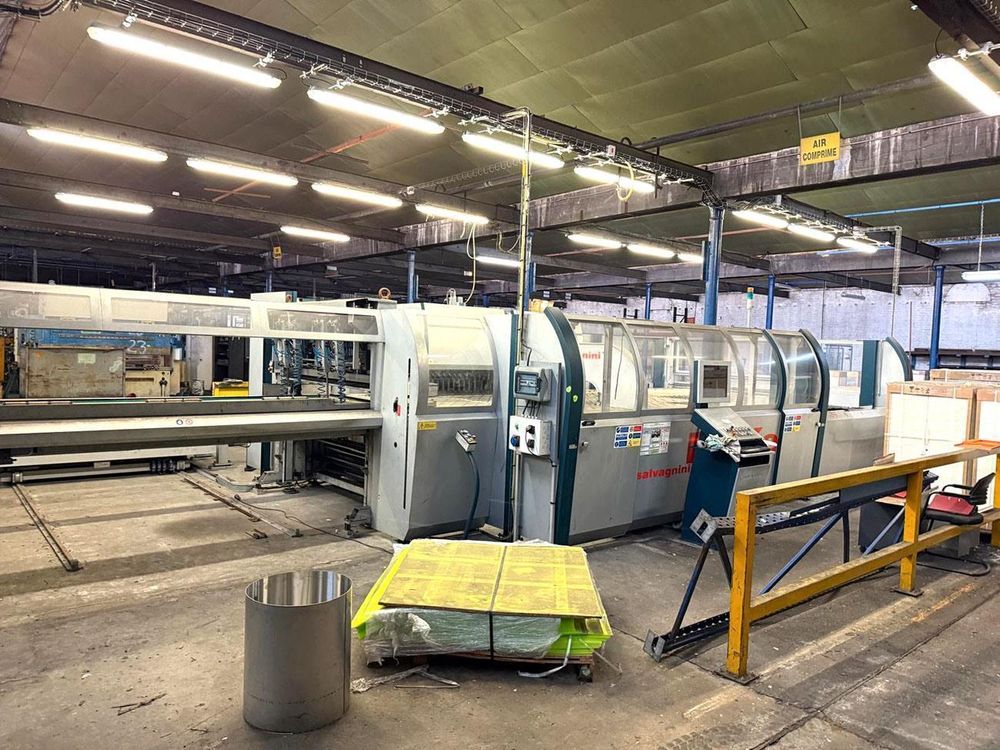

Salvagnini P4Xe-2116

Max Bending Length: 2180 mm
Min Sheet Length: 285 mm
Max Sheet Length: 2495 mm
Min Sheet Width: 190 mm
Max Sheet Width: 1524 mm
Max Diagonal: 2500 mm
Max Workpiece Height: 165 mm
Power: 9 kW

Voice Material Bending Capacity
Min Thickness: 0.5 mm
Max Thickness at 90° (≤1950 mm): 2.5 mm
Max Thickness at 130° (≤1950 mm): 2.1 mm
Max Thickness at 90° (>1950 mm): 2.1 mm
Max Thickness at 130° (>1950 mm): 1.6 mm

Stainless Steel Bending Capacity
Min Thickness: 0.5 mm
Max Thickness at 90° (≤1950 mm): 2.1 mm
Max Thickness at 130° (≤1950 mm): 1.6 mm
Max Thickness at 90° (>1950 mm): 1.6 mm
Max Thickness at 130° (>1950 mm): 1.2 mm

Aluminum Bending Capacity
Min Thickness: 0.5 mm
Max Thickness at 90° (≤1950 mm): 3.2 mm
Max Thickness at 130° (≤1950 mm): 2.5 mm
Max Thickness at 90° (>1950 mm): 2.5 mm
Max Thickness at 130° (>1950 mm): 2.1 mm

Features / Options
ACP - Automatic Loading Table
P4Xe-2116 - Panel Bender
LS1 - Upper Bending Tool
LI - Lower Bending Tool
ABA - Drop Holder with Automatic Length Adjustment
ZLC - Additional Left-Hand Clamp with Sheet Thickness Measurement
ZLC - Right-Hand Intermediate Table with Conveyor
ZTL/RBU1 - Left-Hand Intermediate Table with RBU
SPA - Table Surface with Brushes
NS - Standard Presser
CLA - Tool Holder for Pre-Bending Tools
P - Tool Holder for Optional P Tools
PSE - Cleaning and Greasing Device for Bending Tools
SAP - Removal Device
