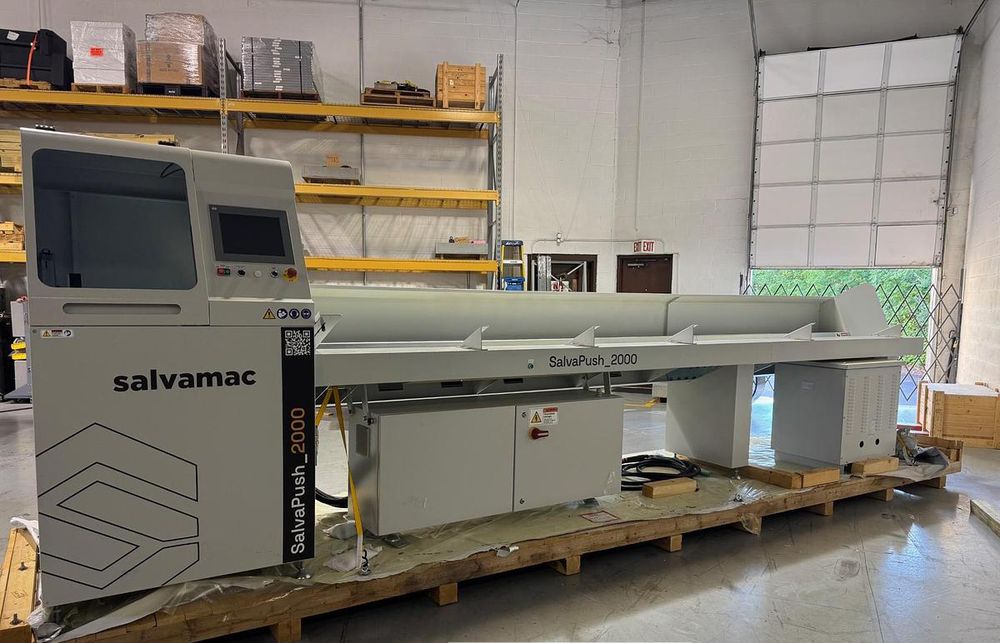

Salvapush 2000-4100 Optimizing/Defect Saw

Salvamac Salvapush 2000-4100 Optimizing/Defect Saw
Max. board length: 4100 mm (13.45 ft) Min. board length 500 mm (1.64 ft)
min. board thickness 12 mm
Blade : 500mm (20”).
Cutting capacity:
Min. 30x12 mm (1.18’x0.51’),
Max. 270x120 mm (10.62”x4.72”) / 300x95 mm (11.81”x3.74”)
240v/480v 3 phase with transformer

• Feeding by precision toothed belt width 50 mm. 33 strips of hard system
• Outfeed table 3 mt (9.84 ft)
• Position reading with brushless motor encoder with digital Ethercat connection
• Infeed motor pushing 120Kg/ 264lb
• Max speed push feed system 90m/min – 296ft/min
• Hydraulic rising of the pusher at the end of the cutting cycle and overhead returning
• During pusher carriage return; photocell wood mapping determines board length
• 25° tilted working table
• Guards, cables, interlocks, etc. to EC safety standards
