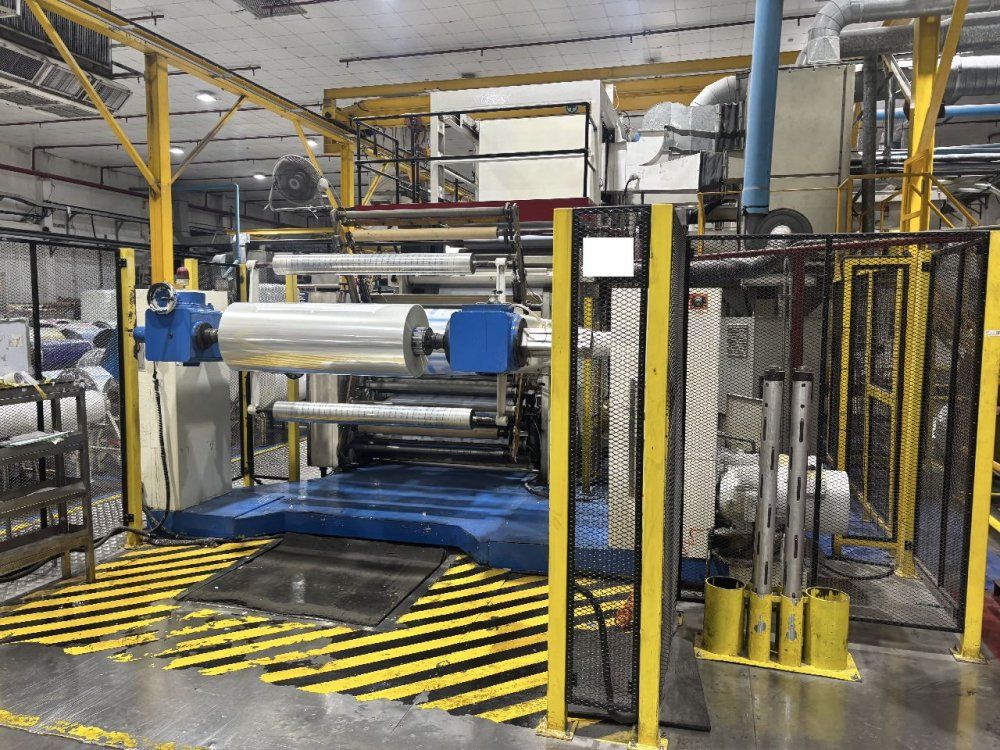

SAM Extrusion lamination machine

Overhaul/renovation:
Several upgrades and renovations up to 2025.
As example 2 x extrusion heads Cloren year 2023
2 corona treatments Mero year 2023
2x NDC thickness gauges y 2013
Thickness control NDC year 2023
Dr. Schenker optical quality control Y 2024)

Width (mm) 1300
Coating/lamination units 4 units: 1- gravure coater, 2- extrusion lamination, 3- gravure coater, 4 extrusion lamination
Coating/lamination unit 1 description: Gravure coater. Double drying hood
Coating/lamination unit 2 description :
Extrusion lamination unit:
- Gravimetri blender -extruder diameter 90mm
- Die Make Cloren, Year 2023 with internal deckling and automatic profile control via thermal bolts
- Chill roll 1000mm diam approx. spares with different finishing available
- Lamination nip

Coating/lamination unit 3 description :
Gravure coater. Double drying hood
Coating/lamination unit 4 description :
Extrusion lamination unit:
- Gravimetri blender -extruder diameter 90mm
- Die Make Cloren, Year 2023 with internal deckling and automatic profile control via thermal bolts
- Chill roll 1000mm diam approx. spares with different finishing available
- Lamination nip

Treatment 3x Corona Mero, Driven. Year 2019 and 2021
Primary unwinder description Turret, flying splice, 1000mm diameter
Secondary unwinder description Turret, flying splice
3rd unwinder description Turret, flying splice
Rewinder description Turret, flying splice, 1000mm diameter

Thickness control system:
- 2x NDC Beta rays (Kr85) year 2013
- NDC thickness profile control Dr. Schenker Easy inspect web inspection system
