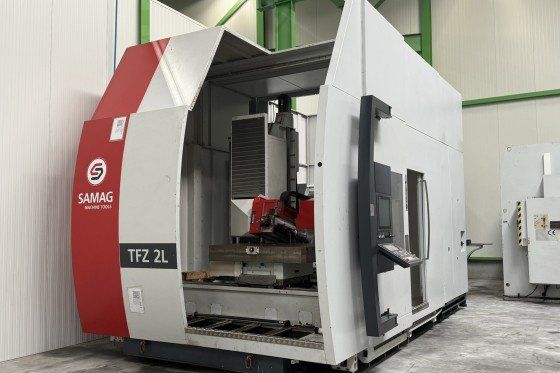

Samag TFZ 2L - 1000 6000 rpm
Ref :
2783899-3-GO
Condition :
Used
Manufacturer :
Samag
Model :
TFZ 2L - 1000
Spindle Speed :
6000 rpm
Year(s) :
2018
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X-axis travel: 1600 mm
Y-axis travel: 1250 mm
Z-axis travel: 1100 mm
W-axis travel: 1600 mm
Control: HeidenHain TNC640
4 side complete machining
Swiveling drilling and milling unit
DCM Dynamic Collision Monitoring
CAM model
QCK Quick Check Kinematics
Transfer bore cycle 380-382
90 bar IKZ coolant system
Chip conveyor
Clear tank capacity: 1650 L
Waste tank capacity: 1300 L
Table size: 1500 x 1100 mm
Table load capacity: 7000 kg
Spindle taper: HSK-63
Spindle speed: 6000 rpm
Spindle power: 23 kW
Maximum drill diameter in steel: 36 mm
Maximum drilling depth: 1250 mm
Automatic tool changer tower: 24 positions
Machine length: 8100 mm
Machine width: 6300 mm
Machine height: 4300 mm
Machine weight: 31000 kg
