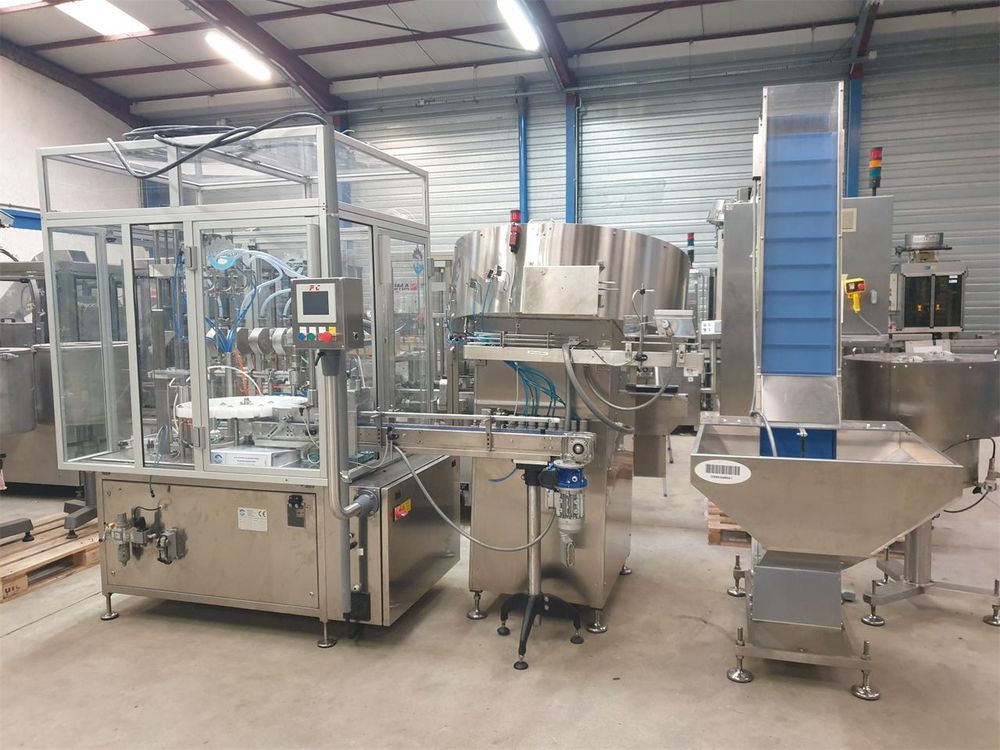

SAMAS ALBA STR 16

Rotary filling-capping-screwing machine for bottles

Weight : 600 kg
Dimensions : (L x W x H) 2.50 x 1.40 x 2.30 M

Automatic filling, capping, and screw-capping machine
for plastic bottles, for liquid, semi-liquid, or shampoo products.

Equipped with:
- Bottle loading station with a stainless steel elevator and a mechanical bowl that positions the bottles on the rotary platform.
- 16-compartment rotary platform.
- Bottle presence check station before filling.
- Product filling station with 4 stainless steel immersion nozzles.
- Product dosing station with 4 adjustable stainless steel volumetric flow meters displayed on the screen.
- ENDRESS + HAUSER flow meter.
- Drip-cutting station.
- Cap removal station with a vibrating bowl and vibrating ramp to move the cap.
- Cap tightening station with a clutch to adjust the tightening torque.
- Cap presence check station.
- Bottle outfeed conveyor.
- Touchscreen with programmable recipe.
- General drive via variable-speed motor.
- Protective guards with safety features.
- Stainless steel chassis.

Sold with peripheral components.
Current tooling:
- Square bottle: 55 x 22 mm.Capacity:
- Bottle dimensions:
* Minimum diameter 14 mm - maximum 85 mm.
* Minimum height 35 mm - maximum 180 mm.

- Capacity from 10 to 2,000 ml.

Maximum hourly production:
Approximately 3,000 bottles, depending on the product and the volume to be filled.

Motor power: 5 kW
Compressed air pressure: 6 bar
380 V - 50 Hz

Overall dimensions of peripheral components:
Belt elevator with bars for the mechanical bottle bowl: 2.00 x 0.85 x 2.65 m. Mechanical bowl: 1.40 x 1.30 x 2.00 m.
Vibrating bowl: 0.70 x 0.70 x 1.30 m
