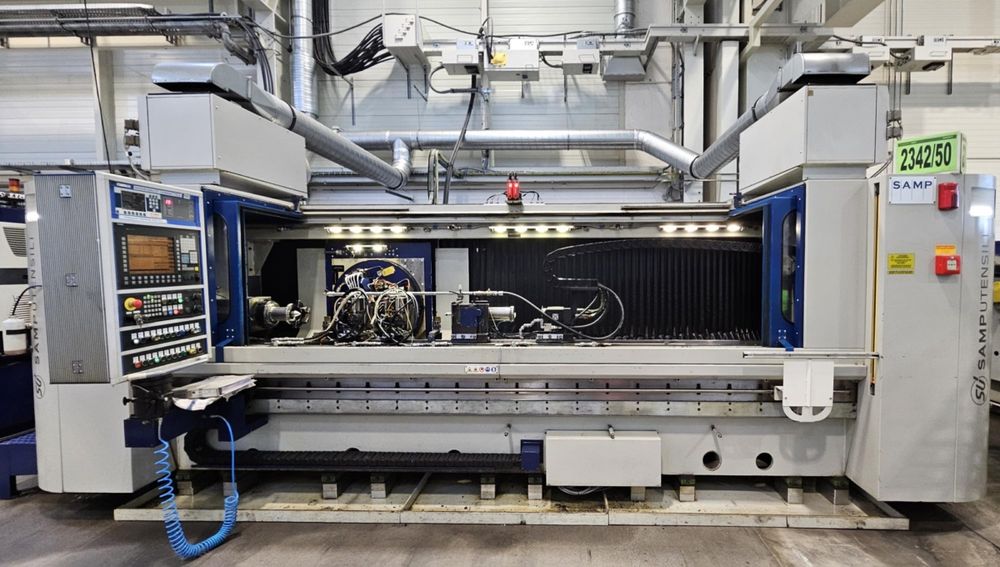

Samputensili S 3000 GW Variable Speed Gear cutting machines / Worm Grinding Machine

Samputensili Type S 3000 GW
Year of manufacture 2012

Accessories:
Coolant tank
Grinding wheels
Various spare parts
Operating and maintenance instructions
CE conformity
Dimensions: 7x4x2.75 m ( LxWxH)

Workpiece data:
max. outer diameter: 250 mm
with max. grinding wheels Ø 450 mm
max. diameter to be machined over table: 375 mm
Profile depth for dressable grinding wheels: 40 mm
max. workpiece length: 3,600 mm
max. distance between centers (1): 2,800 mm
max. bevel angle: +/- 90°
Number of teeth of the workpiece: 1 - 999
max. weight of the workpiece: 250 kg

Working area:
Center distance between workpiece and tool spindle: 355-170 mm
Radial travel: 185 mm
Axial travel: 3,000 mm
Swivel angle: +/- 90°
