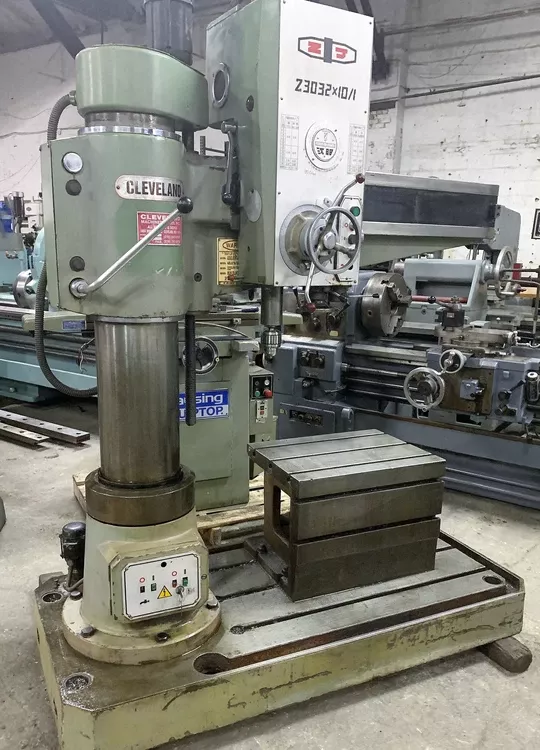

Samstar Z3032X10 2500 RPM

Maximum drilling diameter (cast iron): 1 3/4"
Maximum drilling diameter (steel): 1 1/2"
Distance column to spindle: 39"
Distance spindle to base: 40"
Spindle taper: Morse #4
Quill diameter: 2 3/4"
Spindle travel: 11"
Spindle speeds: 32–2500 RPM (16 changes)
Spindle feeds: 0.10–1.250 IPM (8 changes)
Column diameter: 9"
Arm length: 39"
Box table size: 23 1/2" x 17 1/2" x 17 1/2"
Main motor: 3 HP
Coolant system motor: 1/6 HP
Power elevation motor: 1 HP
Power clamping on column: 1/2 HP
Work light
Overall dimensions: 68" x 32" x 94"
Net weight: 4,500 lbs
