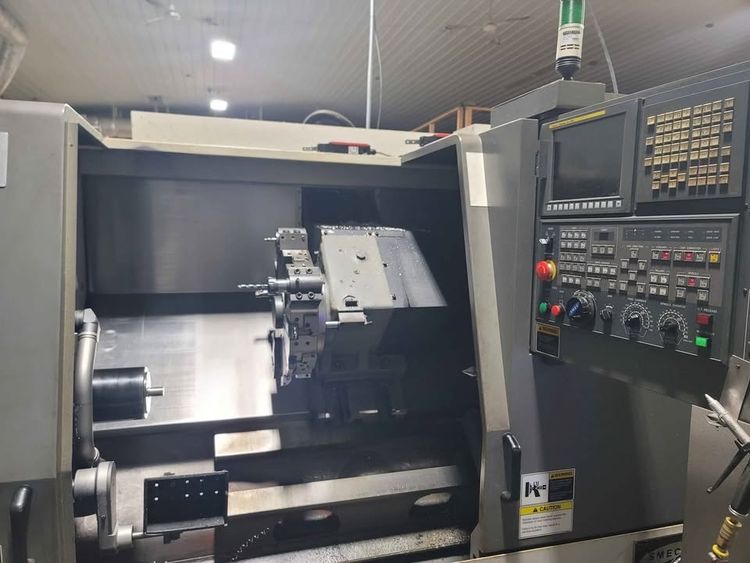

Samsung Fanuc Oi-TD CNC 2500 RPM SL30/1000 2 Axis

X-axis travel 9.06 in
Z-axis travel 43.30 in

Control Fanuc Oi-TD CNC
Tool presetter
Parts catcher
Chip conveyor
Tailstock
Box way guideways
45° slant bed

Bar capacity 3.5 in
Swing over bed 25.59 in
Swing over cross slide 18.90 in
Maximum turning diameter 15.75 in
Maximum turning length 41.34 in

Spindle speed 2500 RPM
Spindle motor power 30 HP continuous
Spindle motor power 25 HP peak
Spindle nose A2-8
Spindle bore 4.13 in
Draw tube ID 3.58 in
Through spindle capacity 3 in

Rapid traverse X-axis 709 IPM
Rapid traverse Z-axis 945 IPM

Chuck size 12 in
Tool stations 12
OD and ID tool capability

10 in chuck
12 in chuck
Samschully chucks
S30 collet closer
Collet pads
Hard jaws
Soft jaws
Spindle liners
Iemca bar feeder
Various tools
