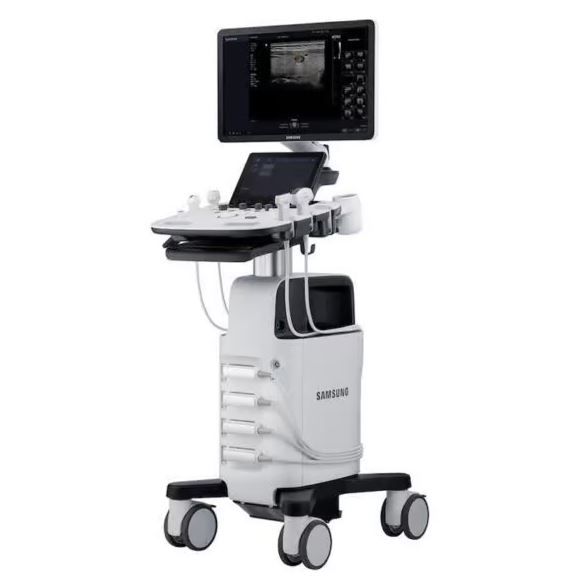

Samsung Medison HS40

The Samsung HS40 is an economy multi-purpose diagnostic
ultrasound system designed to cover a wide range of applications
including obstetrics, abdominal, gynecology, pediatric, small organs,
neonatal cephalic, adult cephalic, trans-rectal, trans-vaginal,
MSK (conventional, superficial), urology, adult cardiac, and peripheral vessel.

The Samsung HS40, similarly to the HS60 and HS50, is empowered
by the “S-Vision Imaging Engine” featuring 64 transmitting channels
and is equipped with a number of high performing hardware such as
a 21.5″ LED monitor, a fully customizable 10.1″ LED touchscreen,
3 active probe ports (with a 4th as an option), convex
and endocavity volume transducers (VN4-8, V5-9),
and a broad bandwidth linear array transducer (LA3-16A).
These transducers effectively cover a wide array of clinical requirements,
thanks to their low to high bandwidth frequency coverage.

Realistic Vue is Samsung’s leading 3D/4D technology
on the market and is an outstanding fetal-maternal bonding tool similar
to GE’s HDlive. The HS40 also supports the unique and automated 5D NT
and 5D Follicle features along with XI STIC and 3D XI.
These technologies will help enhance the physician’s diagnostic confidence during pre-gestation to pregnancy stages.

Although the Samsung HS40 is not targeting the cardiovascular market,
it is still competitive as an economic system
with Strain (Automated LH measurement based on 2D speckle strain technology),
Auto IMT, cardiac S/W, TDI, and CW.
Along with its wide range linear array transducer and its,
General Imaging features such as Elastoscan, Panoramic, and Needle Mate ,
the HS40 adequately meets the fundamental requirements
of interventional procedures.

• Height: 1,354 ~ 1,620 mm (with monitor)
• Width: 520 mm
• Depth: 730 mm
• Weight with monitor: 54 kg ( 119lb.)

Specifications:
• Digital beamformer
• Displayed imaging depth: 0 – 38 cm (probe dependent)
• Minimum depth of field: 0 – 2 cm (probe dependent)
• Maximum depth of field: 0 – 38 cm (probe dependent)
• Continuous dynamic receive focus/continuous dynamic receive aperture
• Adjustable dynamic range from 30 to 256 dB

Samsung HS40 Electrical power:
• Voltage: 100 – 240 VAC
• Frequency: 50/60 Hz
• Power Consumption
– 800 VA with Peripherals

The Samsung HS40 is positioned as an economy grade ultrasound system similar
to the GE Logiq F8 and the GE Voluson P6, and is meant to take the place
of the SonoAce R7. Its General Imaging and 3D/4D options for Obstetrics
and Gynecology are better than those of the GE Logiq F8 and the GE Voluson P6.

Samsung systems are known for being great ergonomic systems
that integrate “easy-to-use” automated features, as one would expect
from the #1 commercial electronics giant.
The new architecture supporting the HS40 has greatly evolved compared
to the previous solution, the SonoAce R7, not only in regards
to the hardware platform, but also in regards to the imaging technologies
which now include S-Harmonic, ClearVision, and MultiVision.

Touch customization combined with Samsung’s user interface
options greatly increase work efficiency and reduce
the unnecessary workload from repeated operations and actions.
These interface options, also found on the Samsung HS60 and H50,
include Quick Preset, EZ-Exam , EZ Compare, Measure Navigation,
and Quick Scan.

The Samsung HS series is rich in features for both General Imaging
and OB/GYN applications. Although the HS50 and HS40 are positioned differently,
they have a similar software package. Still, the Samsung HS5 does
have better overall image performance and feature functionality due
to its stronger platform.

Strain on the Samsung HS40 is a key differentiating feature
in the economy category that makes the cardiac exam process easier.
Even inexperienced operators will be able to comfortably complete
core cardiac measurements in a timely manner.

The Samsung HS40 is one option that can provide some of the most advanced
4D options on the market featuring Realistic Vue, automatic NT measurement,
and automatic follicle measurement. It is also one of the few options
in the economy category to support both Needle Mate and Strain .

Convex Probe
CA2-8AD
CF4-9

Linear Probe
LA3-16A

Phased Array Probe
PN2-4

Endocavity Probe
EVN4-9

4D Volume Probe
VN4-8
V5-9

Ped off Probe
DP2B

• 21.5″ LCD monitor
• 10.1″ LCD Touch Screen
• Hybrid Full Digital Beam-forming
• 3 or 4 Active Probe Ports (Optional)
• Height adjustable control panel
• Height/Tilt/Rotate adjustable monitor
• Virtual Alpha Numeric Keyboard
• On-board storage for peripherals
• 5 probe holders
• 4 Swivel/Lock wheels
• Front handles
• Built-in Printer storage
• Integrated high-fidelity stereo speakers
• Integrated HDD 512GB
• Integrated DVD Multi Recordable Driver
• S-Harmonic Mode
• S-Flow
• Trapezoidal Imaging
• Quick Scan™ (Automatic Optimization)
• ClearVision
• Raw Data Analysis
• Post-image optimization
• Patient Information Database
• System internal dynamic range: 256
• User programmable key: 4 kyes
• Support for external USB 2.0 HDD drive
• Auto Calc (Real-Time Automatic Doppler Calculation)
• Doppler Auto Trace
• User Configurable Measurement Menu
• Customizable Measurement Menu
• Customizable Body Maker
• Post-Measurement
• On-board electronic documentation
• SonoView™

• Digital BW Video Printer: Sony UP-D897, Sony UP-D898MD, Sony UP-X898MD, Mitsubishi P95DE, Mitsubishi P95DW
• Digital Color Video Printer: Sony UP-D25MD, Mitsubishi CP30DW
• USB Line Printer: Samsung CLP-620NDK, ML-2950
• USB Footswitch
• USB Digital ECG Kits (AHA/IEC)
• USB HDD
• USB Flash Memory Media
• USB Printer
• DVD Rrcorder

Samsung HS40 Supplies:
• Aquasonic ultrasound gel
• Sono ultrasound wipes
• Console Protective Cover
• Sony UPP-110HG thermal printing paper
• Sony UPC-21L color thermal printing pack
• Mitsubishi KP95HG thermal roll paper (new)
• Mitsubishi KP65HM-CE High density thermal paper
• External USB printer connection

Samsung HS40 ports:
• Audio out L/R
• D-SUB output
• S-Video output
• HDMI output
• USB 2.0 (6 ports)
• Ethernet 10/100/1000BASE-T
• Foot Switch: USB 2.0 (IPX 8)
• DVD Recorder: Sony DVO-1000MD
– S-video, NTSC/PAL
– Recording only

Samsung HS40 image storage and docudmentation:
• SonoView II (Image Filing Package)
• Export Media: CD/DVD R/-R/RW, USB Flash, External USB HDD
• Export Format: JPEG,BMP,TIFF,DICOM
• Maximum 45,000 Frames for Cine memory for 60 sec
• Maximum 14,000 Lines for Loop memory
• Number of Image Storage (built-in SSD): max. 350,000 images (RAW format)
• Print Function
• Patient list and data search
• Report save available
• Post image processing available
• Caliper measurement available
• DICOM 3.0
• DICOM Media
• DICOM Performed Procedure Step (PPS)
• DICOM Print
• DICOM Storage
• DICOM Storage Commitment (SC)
• DICOM Structured Reporting (SR)
• DICOM Verification
• DICOM Worklist
• Gray Scale Converting
• Multi Frame
• Single Frame
• 3D Volume Frame
• Transfer Mode
– Send after acquisition
– Send on end exam
– Send manually

• 4D
• 3D XI™
• Auto IMT
• Cardiac Measurement
• CW Function
• DICOM 3.0
• EZ Exam
• Hello Mom
• Needle Mate
• Panoramic
• 5D NT
• 5D Follicle
• RealisticVue
• XI STIC
• MultiVision
• Strain
• Elastoscan
– LA3-16A: Breast, Thyroid
– EVN4-9: Gynecology, Adnexa, Prostate
– V5-9: Gynecology, Adnexa, Prostate

• DVD-RW
• ECG (AHA / IEC)
• Foot Switch
• Gel Warmer
• Printer Tray (Large / Small)
• 3P connector PSA
• 3P Connector PSA (with Pencil Probe Port)
• 4P Connector PSA
• 4P Connector PSA (with Pencil Probe Port)
• Alpha-Numetric Keyboard

Applications
• Abdomen
• Cardiac
• Gynecology
• MSK
• Obstetrics
• Pediatric
• Small Parts
• Urology
• Vascular
FAQs

ClearVision
The noise reduction filter improves edge enhancement
and creates sharper 2D images in order to deliver an optimal diagnostic performance.
The integration of a technologically advanced Samsung product brings about
a notable improvement in the quality of images. In addition,
ClearVision provides application – specified optimization
and advanced temporal resolution in live scan mode.

S-Harmonic
The ordinary harmonic technology is able to provide greater image clarity
from near to midfield, while also reducing signal noise.
Combined with S-Vue transducers and S-Vision imaging engine,
the S-Harmonic overcomes the technology limitation
of the ordinary Harmonic technology, and improves the quality
of the image from near to far field.

ElastoScan
This is a diagnostic ultrasound technique that is able to display elasticity
by converting the stiffness into color images, while detecting the presence
of solid masses in tissues.

Auto IMT
Auto IMT is a screening tool that is able to analyze a patient’s potential risk
of cardiovascular disease. It allows easy measurements
for intima-media thickness of both the anterior and posterior wall
of the common carotid by one click.
This simple procedure enhances exam productivity and adds diagnostic value.

Quick Preset
With one touch, the Quick Preset shows the four most commonly used transducers
with each combined preset. The Quick Preset provides maximum efficiency
by changing the transducer and preset, and by reducing unnecessary repeated keystrokes.

EZ-Compare™
The EZ-Compare™ allows corresponding views in a side-by-side display
for patients who have previously taken exams. Moreover,
EZ-Compare™ automatically matches the image settings, annotations,
and body markers from the prior study.

EZ-Exam ™
The EZ-ExamTM enables users to build or to use predefined protocols.
It transforms the ultrasound investigation into a streamlined process.
EZ-Exam ™ ensures that the full investigation is performed and eliminates the risk
of forgetting an image or loop capture.

Measure Navigation
The Measure Navigation is a function that zooms in on the starting point
of the caliper cursor in order to increase accuracy of measurements by providing
a zoomed in target area image.

5D Follicle™
The 5D Follicle™ is an automated 3D measurement function that identifies
and measures multiple ovarian follicles for rapid assessment of follicular size
in 3D and status. The 5D follicle is a great assisting tool that is able
to increase the efficiency and success ratio of the in-vitro fertility procedure.

5D NT™
The 5D NT™ is an automated 3D measurement function that allows the user
to obtain the true mid-sagittal plane automatically.
This can happen by rotating and auto-zooming the 3D volume image in order
for the operator ton obtain the accurate NT measurement. 5D NT™ can lower
the operator dependency and increase reproducibility.

Realistic Vue™
The Realistic Vue™ is the same feature as the GE HDlive, which provides the user
with a movable light source and with calculations of the propagation
of light through the skin and tissue.
The user can freely position the light at any angle, relative
to the ultrasound volume images that illuminate areas of interest.
The Realistic Vue™ helps increase depth perception, reveal hidden details,
and provide a deeper understanding of relational anatomy.

Strain
Strain is a quantitative tool for the global and segmental wall motion
of the left ventricle (LV). In Strain , three standard LV views
and a Bull’s Eye are displayed in a Quad screen for an easy and quick assessment
of the LV-function.
