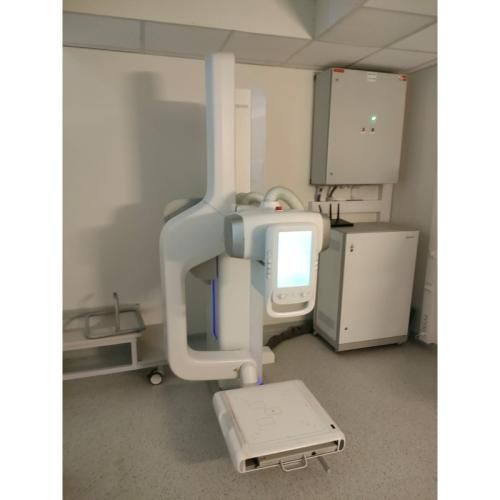

Samsung Xgeo GU60A Digital Radiography System

Accessories :
Digital flat panel detector

Options :
Model: DGR-U6LN2
Software v3.05.21 B39 S-Vue: v3.2.15.1
Integrated Version: v3.02.26 B07 S-Station 3.02
Collimator YOM: 2014
Detector refurbished in 2019
System Cabinet YOM: 2013
Hardware: THU / MCU/ Head SU / Swivel SU / Detector Su / Collimator / CIB

Features
Fully motorised and automated U-arm
4-axis automatic collimator with LED lamps
Automatic exposure control (AEC)
Automatic and guided positioning
Pre-recorded anatomical programmes (APR)
Smart Stitching: automatic image fusion for whole body
Multilingual user interface with 21" Full HD screen
XGEO workstation with fast image processing (< 5 s)
Full DICOM compatibility (modality worklist, MPPS, PACS, etc.)
Remote Management System
Dose tracking with Dose Area Product (DAP) option
Image export via USB, CD/DVD
Intuitive interface with annotations, zoom, inversion, measurement, etc.

Technical Details
Arm type: motorised U-arm, rotation from -30° to +120°
SID range (source-image distance): 1000 mm to 1800 mm
X-ray tube:
Voltage: 40–150 kV
Anode thermal capacity: 300 kHU (210 kJ)
Focus size: 0.6 mm / 1.2 mm
Permanent filtration: 0.9 mm Al @ 75kV
High-voltage generator:
Power: 50 kW or 65 kW
Switching frequency: 200 kHz
Voltage: 380/400 VAC, 3-phase
Current: 10–630 mA (50 kW) / 10–800 mA (65 kW)
Exposure time: 0.001–6.3 seconds
Digital detector:
Type: Amorphous silicon TFT / CsI scintillator
Active surface: 17"x17" (429 x 429 mm)
Resolution: 3072 x 3072 pixels
Pixel size: 143 µm
Grey scale: 14 bits
DQE > 65%, MTF > 60% at RQA5
System dimensions:
U-arm: 2239 × 1705 × 2200 mm
Weight: approx. 550 kg
Generator cabinet: 567 × 750 × 1112 mm
Cabinet weight: approx. 177 kg
Operating conditions:
Temperature: +10°C to +40°C
Humidity: 30 to 75%
Atmospheric pressure: 70–106 kPa

Compatible Accessories
Patient transfer table
Barcode scanner
