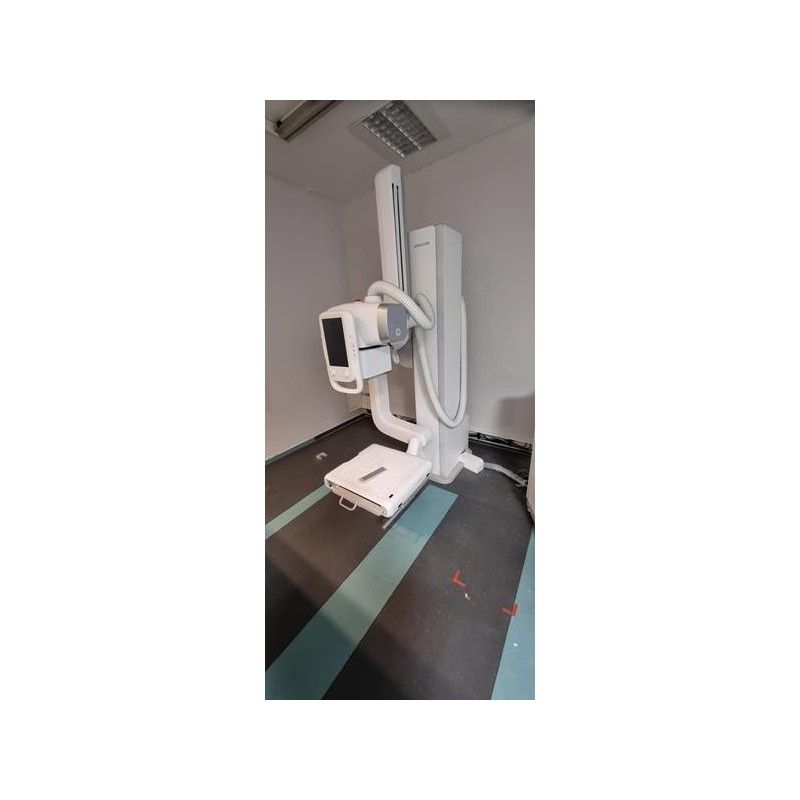

Samsung XGEO GU60A U-arm X-ray machine

The XGEO GU60A is a universal, fully motorized system.
Its unique U-arm rotates +120°~ -30°, and the SID travels 100cm~180cm to
enable any examination in any position.
Chest or shoulder X-rays are made easier for
wider shoulders by rotating the detector 45°.
The XGEO GU60A also provides dual-speed movement to improve user convenience,
and the fast-moving arm increases the system throughput.

Swivel arm: Rotation Angle: -30° ~ +120°,
Vertical Transverse Distance: 1190mm
SID (X-ray Tube Moves):
Moving Distance : 800mm,
Moving Range : 1000~1800mm
THU Rotation Angle: -90° ~ +90°
Receptor Rotation Angle: 0˚, 45˚
Receptor Tilting Angle: -45°~+45°

High Voltage Generator
Max. Output : 65 kW
Exposure voltage: 40~ 150kV (1kV step)
Switching frequency: 200kHz
Line voltage: 380/400VAC, 3-Phase, 50/60Hz
mA range: 10~800mA (65kW)
Time range: 0.001~ 6.3 sec.
Generator cabinet dimensions (L ×W× H): 567mm× 750mm× 1112mm
