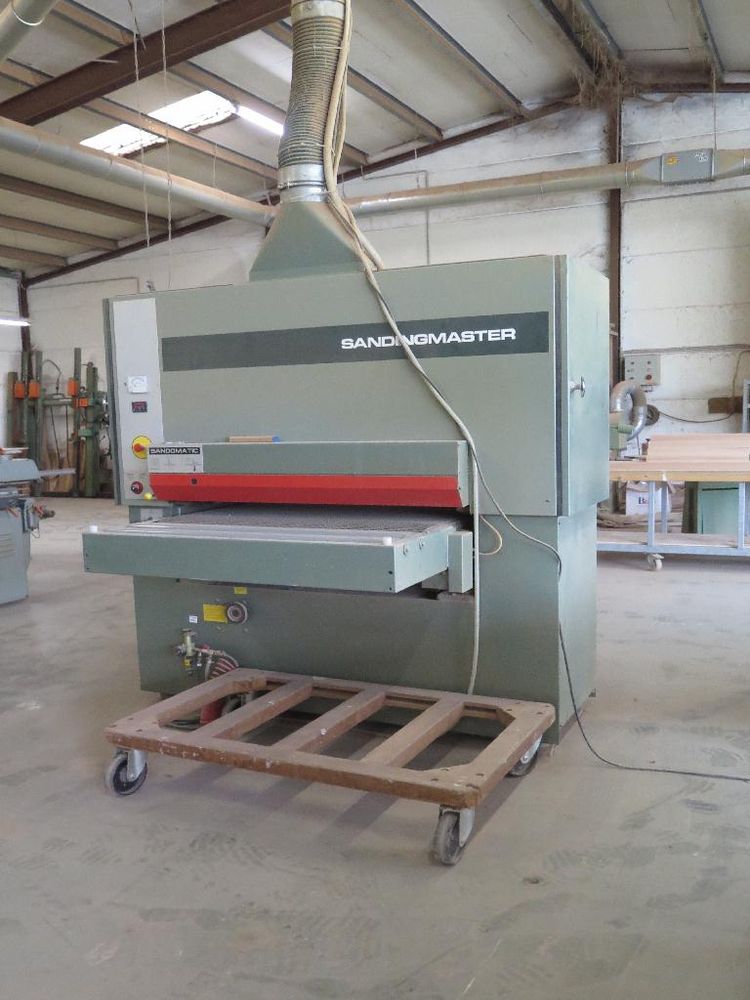

Sandingmaster KCSB-1100 U

Wide Belt Sander
Suitable for calibration, fine sanding, and combination sanding
Working width 1100 mm
Maximum workpiece thickness 150 mm
1 sanding unit consisting of
Combination unit with contact roller and sanding pad
Feed speed 7-14 m/min
Sanding belt dimensions 1130 mm x 1900 mm
Motor power 15 kW
With cleaning brush
Total connected load 16 kW
Roller table at the inlet
Roller table at the outlet
Conveyor carpet in good condition
Workpiece length min. 280 mm
Extraction nozzle diameter 200 mm
Operating pressure 6 bar
Dimensions approx. 2010 mm x 1700 mm x H 2000 mm
Weight approx. 2000 kg
