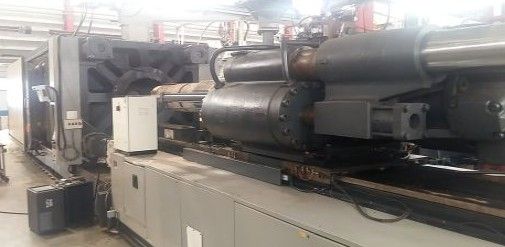

Sandretto Series 8 17750/1300 1300 T
Ref :
2733959-6-MT
Condition :
Used
Manufacturer :
Sandretto
Model :
Series 8 17750/1300
Capacity :
1300 T
Year(s) :
1998
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Clamping force: 1300 T
Screw diameter: 135 mm
Plasticizing capacity: 145 g/s
Injection capacity: 1100 cm³/s
Injection pressure: 2000 bar
Injection volume: 8874 cm³
Mold thickness (min/max): 450 x 1600 mm
Distance between tie bar (h x w): 1404 x 1404 mm
Platen dimension (h x w): 2080 x 2080 mm
Closing stroke: 1530 mm
Centering ring diameter: 250 mm
Ejection passage diameter: 250 mm
Ejection stroke: 400 mm
Dimensions: 15.86m x 3.18m x 3.16m
Weight: 111000 kg
