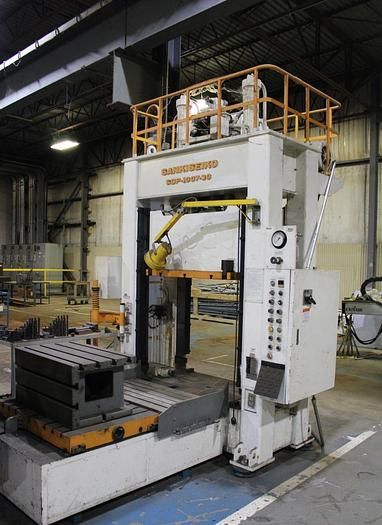

SANKISEIKO SDP1007-30TA/F180 30 tons

Press force (pressing) 6 to 30 tons
Press force (lifting) 17 tons
Slide stroke length 33.4 in
Table stroke length 57 in
Reversing device stroke length 18.3 in
Trial device stroke length 8.6 in
Ejector device stroke length 7.4 in
Daylight 35.4 in
Slide and table area (L × W) 39.4 × 27.55 in
Table load capacity 3 tons
Clapper load capacity 1.2 tons
Press speed down 2 in/sec
Press speed pressing 0.4 in/sec
Press speed up 3.5 in/sec
Table speed in & out 3.9 in/sec
Reversing device open speed 1.1 in/sec
Reversing device close speed 1.5 in/sec
Motor power 7.3 HP
Motor rating 5.5 kW
Straight-side frame
Traveling table design
T-slotted table
T-slotted ram
Ejector
180-degree reversing device
Trial device
Gauging system
Hydraulic system
Some clamps and shims included
