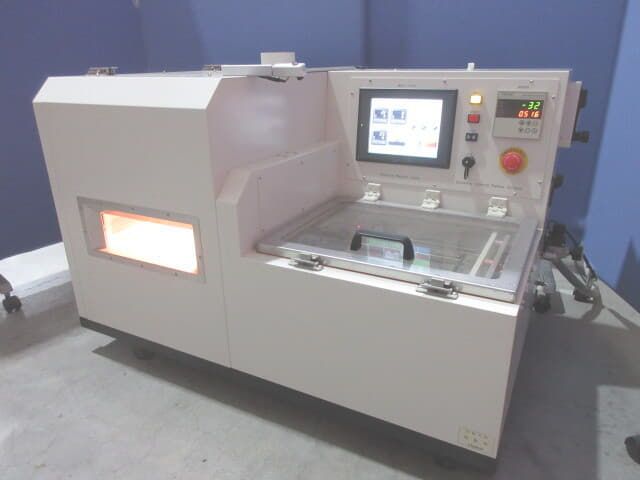

SAR-500N2 Electric Stationary Reflow Oven (Air/Nitrogen Compatible)

Brand Okuhara

Specifications
• Maximum Workpiece Size: 250 x 320 mm
• Workpiece Height: Top 20 mm, Bottom 20 mm
• Heating Method: Top Heater 6 kW, Bottom Heater 6 kW
• Temperature Control: PID Control
• Workpiece Heating Capacity: From Room Temperature to
320°C in approximately 3 minutes (using a sample workpiece)
• Profiles: Can be saved in PLC memory. MAX 10-zone profiles x 100
• External Dimensions: Approx. W1150 x D700 x H730 mm
• Weight: Approx. 160 kg

〇Utilities
• Air: 0.5-0.7 Mpa Dry Air
• Power Supply: 3φ AC200V 50/60Hz 2KVA

Equipment Status
Instruction manual included
