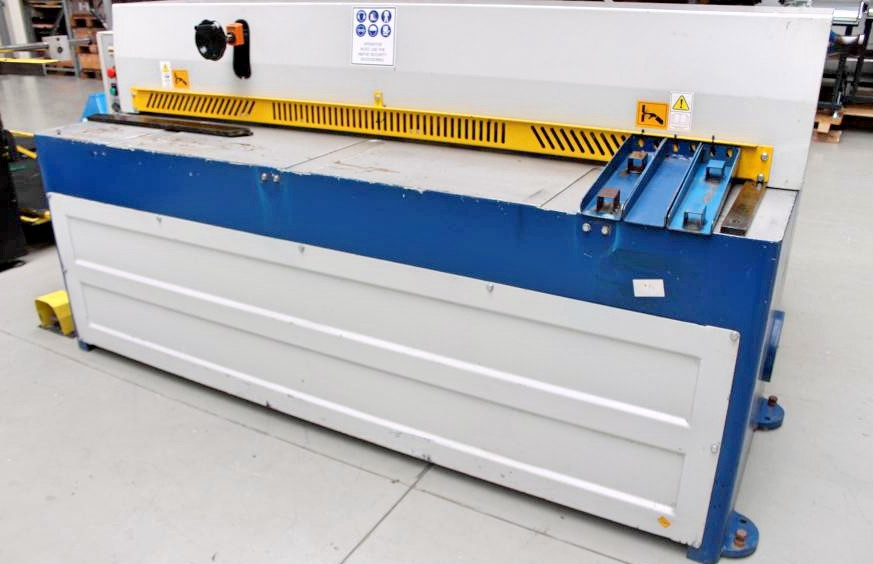

SAYMAC IES 100
Ref :
2745644-3-MT
Condition :
Used
Manufacturer :
-
Model :
SAYMAC IES 100
Year(s) :
2013
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Sheet width 2100 mm
Plate thickness 3.0 mm
Thickness at stainless steel 1.5 mm
Blade length 2110 mm
Number of strokes 34 strokes/min
Back stop adjustable max. 735 mm
Cutting angle 1.5°
Work height max. 810 mm
Control conventional
Engine output 5.0 kW
Weight 1750 kg
Dimensions (LxWxH) 2600 x 1900 x 1250 mm
Robust electro-mechanical sheet metal shears
Heavy robust drive motor
Manual back stop with analog position display
Adjustment range max. 735 mm
Adjustment from front using handwheel
1 table side stop
2 front support arms
1 movable foot switch with emergency stop button
Control cabinet/operating unit front left
Rear safety device grid enclosure
Pneumatic sheet metal holding device for thin sheet cuts
