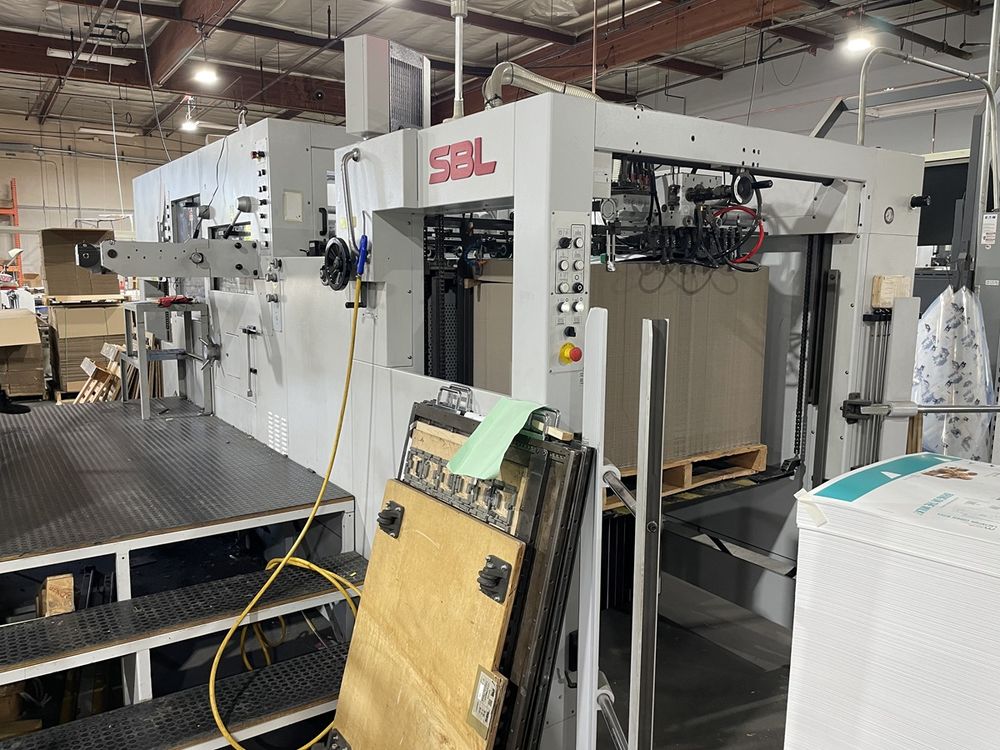

SBL 1050 SE

Die Cutter with Stripping
-Wide feeding range from 400x370mm
-Non-stop device for feeder and delivery station allows for continuous production.
-Double sheet and front lay register device for proper sheet calibration.
-Push and pull (2-in-1) side guide device for quick changeovers.
-Seven (7) high strength alloy gripper bars with specially designed gripper bar fingers which open simultaneously.
Each gripper bar is also equipped with a registration adjustment system.
-Touch screen monitor with computerized self-diagnostic system is easy to operate and helpful for troubleshooting each section.
-Cutting pressure can be adjusted manually according to the stock requirements up to a maximum pressure of 300 tons.
*Various stock cutting range from light paper to B-flute.
-Special double action stripping device and gripper edge device for easy waste removal.
-The brush and jogger device in delivery station for proper pile alignment.
-Stripping section with center line system and registration system
