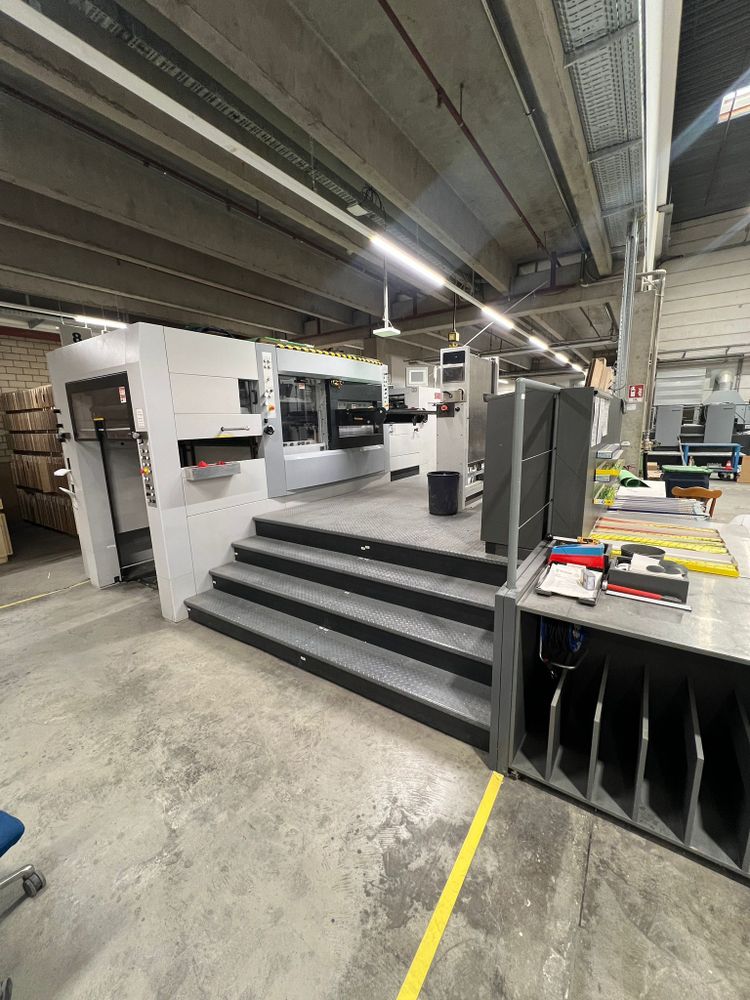

SBL 1060 SE

Elevated machine 400 mm
Sheet feeder: Manual non-stop pile feeder
Material range: Paper and board from 470 × 350 mm to 1060 × 760 mm
Max cutting format: 1050 × 740 mm
Min sheet size: 470 × 350 mm
Max sheet size: 1060 × 760 mm
Max cutting pressure: 300 tons
Material thickness: 0.1 – 2 mm (corrugated/laminated max 4 mm)
Min gripper margin: 9.5 mm
Max inside chase size: 1155 × 852 mm
Cutting plate size: 1076 × 756 mm
Max speed: 8,000 sheets/hour
Power consumption: Total 32 kW (22 kW 10 kW for lower plate heating)
Machine dimensions (L×W×H): 5,900 × 5,700 × 2,615 mm
Max pile height – feeder (with pallet): 1,750 mm
Max pile height – delivery (with pallet): 1,450 mm
Vaccuum belt on feeder
Pneumatic feeder table
Non-stop manual feeder system
Anti-static system
Pre-pile device
Manual suction group adjustment
Micrometric suction adjustment
Motorized side pile adjustment
2 pneumatic side register guides
Electronic control of front and side register
Cutting/Embossing Section
Automatic pressure adjustment up to 300 tons
Preparation and introduction table for die frames in platen quick-lock die chase frames with bottom plate
Pneumatic locking of the chase and lower supporting plate
Centerline System
Micrometric system
Stripping
Quick lock for upper and central stripper frames
Double accessory kit for lower stripper prep (pins, bars, clamps, etc.)
Delivery Section
High-pile automatic non-stop delivery with conveyor
Sheet deceleration device
Tab insertion device
