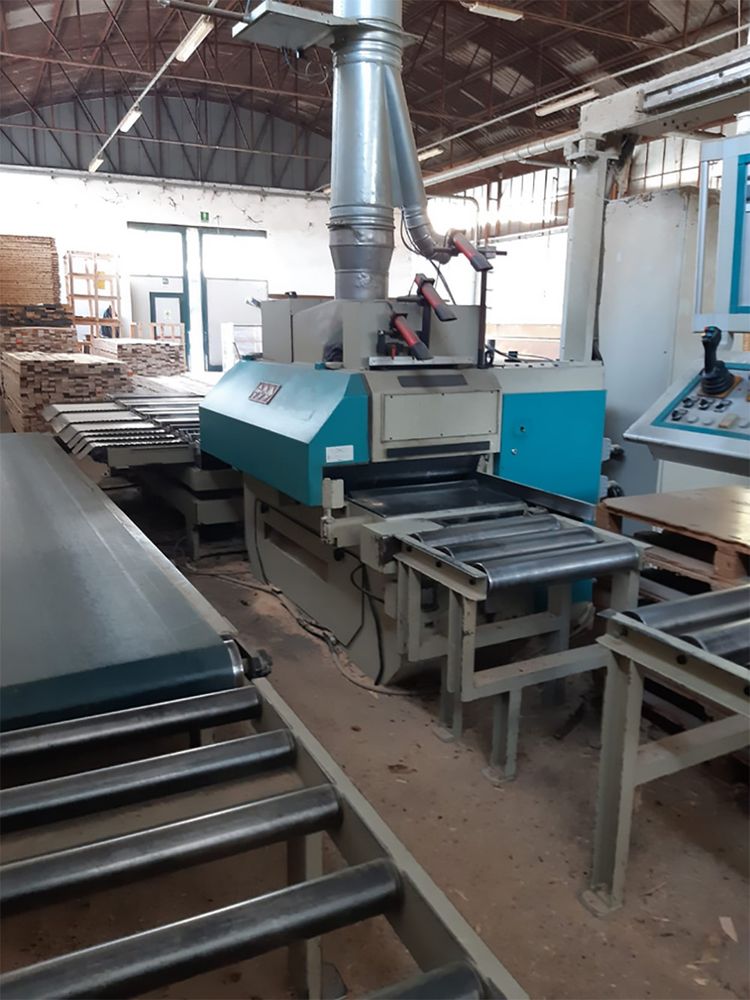

SCA320 2R T350 Multi-blade saw

Multi-blade saw with 2 moving blades CML with separation line and return of pieces to the operator:
– machine management from a separate control panel, with:

* CNI electronic programmer
* 2 joysticks for managing the 2 moving blade units
* variable feed speed (inverter), with digital display
* motorized positioning of the blade group, with digital display
* motorized positioning of the presser, with digital display
* motorized positioning of the guide at the machine entrance

– 1 fixed blade + 2 moving recirculating blades
– 1 fixed laser + 2 mobile lasers, for cutting lines
– 350mm cutting width, 320mm cutting width
– blade diameter from 220 to 350/360mm max
– useful cutting height with 360mm moving blades: 100mm
– useful cutting height with 350mm moving blades: 95mm
– useful cutting height with fixed spindle and 350mm blades: 120mm
– blade motor kw 37 / hp 50
– total power kw 40 / hp 55
– automatic lubrication pump
– motorized separation line at the exit of the machine, with unloading of the
pieces cut on the right side, and return pieces to the operator on the left side
– overall dimensions approximately 10 x 4 m
CE compliant
