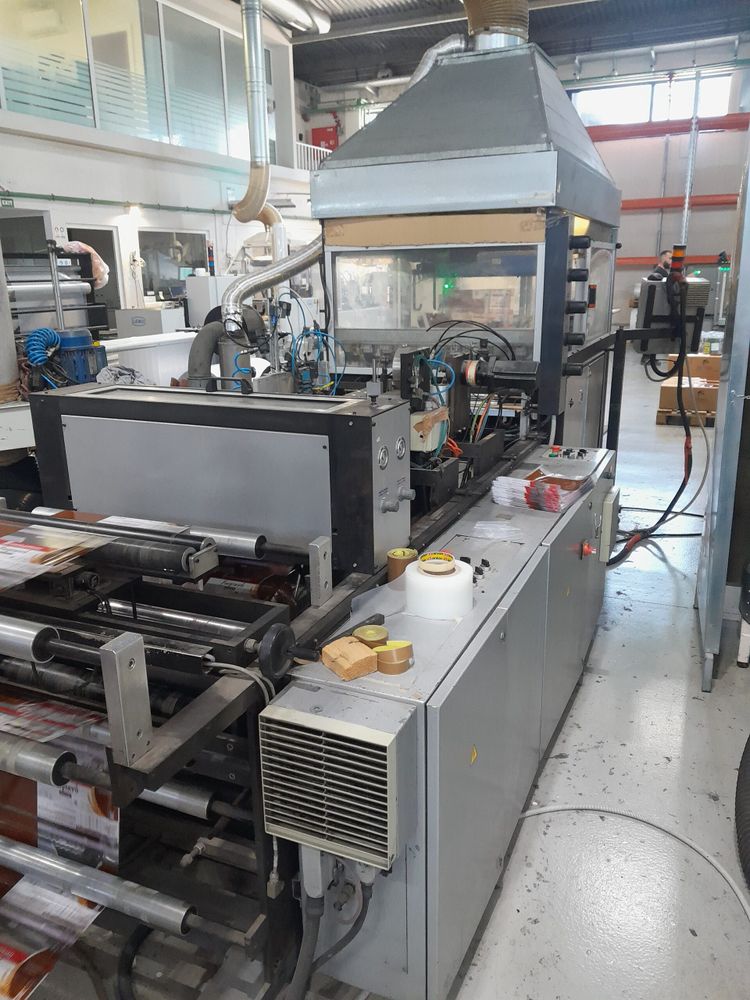

Scae Dimatic 471 CPU 66 Plastic welding machines

For the production of bread bags and bags with holes on the gusset, also with handle on top
Materials: LDPE, CPP
Max bag width: 600 mm
Min – max bag length: (100) 120 – 350 mm
PLC control: Robox central CPU, 5 servo driven motors for 5 main axles (sealing bar, windmill, main draw roll, aux draw roll, stacker)
Sealing bar: 660 mm
Availability of two sealing bars complete bridge and seal profile easy change, also a spare sealing profile, metal only.
Owner produces LDPE30-60μm and CPP30-60μm one bar each material.
Motorize tension control on unwinder, tension control on film at main machine
with servo driver motors, easily adjustable from HMI. With FIFE web guide
V folding with motorized movement from control panel
Gusseter with plate and wheel
longitudinal perforation
Hole puncher with safety punch
Bag counter
Hydraulic roll lifting
Presealer
Block for holes on gusset
4 simco antistatic bars
Easy opening the windmill away of sealing bar for maintenance and clean sealing bar
MooG system of Drive motor
Vacuum pump for windmill
Scrap collector
Chiller Unit not available (the owner uses central water cooling system), the buyer needs to install 1-2 KW water chiller unit
Max production speed: 300 cycles/min (for bread bags client uses speed of 220 cycles/minute)
Visible in production
Immediately available
