Schaetti null null Calander

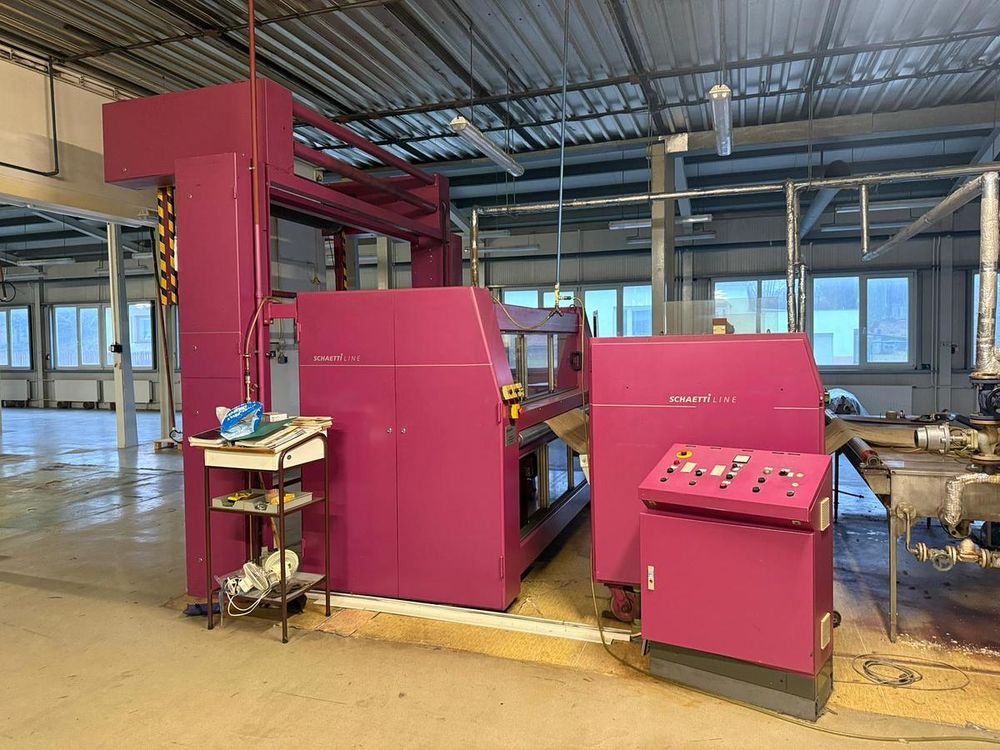

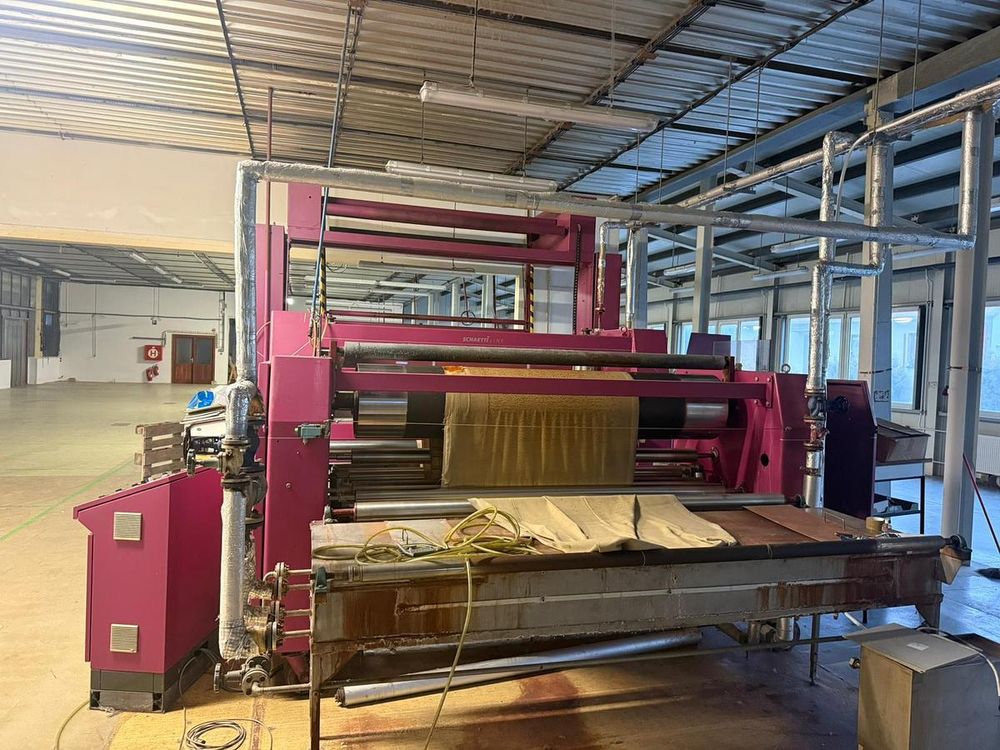

2-roller Calandar, make Schaetti (CH), Type Line 4072,

including heating unit Type Schaetti Line 4073 and plaiter Schaetti Line 95022

Year of manufacture 1995,

working width 1,000 – 2,200 mm,cylinder width 2,400 mm

working speed 0 – 70 m/min.

Heating roller, sheated steam, max. 200°C – operating pressure approx. 15 bar

Pneumatic operating pressure 10 bar

voltage 3 x 380 V / 50 Hz

Heating station type Schaetti Line 4073
- Heating rollers 450 mm diameter, hard chrome-plated
- mobile
The heating station dehumidifies the steam-treated substrates on both sides.
Depending on the preselected temperature and speed, this process is carried out either more gently or more quickly.
Calandar Type Schaetti Line 4072, 2 rollers
- Heating roller, 610 mm diameter, hard chrome-plated,
- Pressure roller 305 mm diameter, silicone-coated (10 mm),
max. pressure load 20 N/mm, max. temp. 200°C
The calandar smooths the substrate using the silicone-coated pressure roller and the application of heat.

Plaiter Schaetti Line 95022 model

Feeds the smoothed substrate into the sheeter trolleys provided by the customer.

Technical documentation and drawings available
