Schafberger & Sprödhuber Bavaria

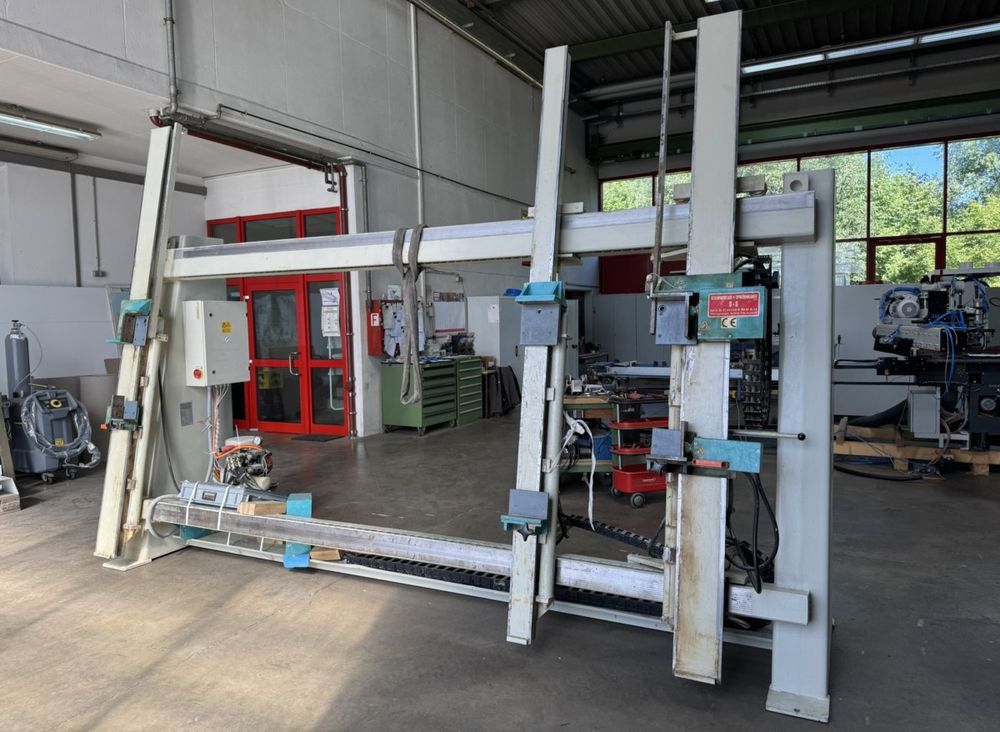

Frame Press
With automatic pressing cycle + manual control for tenon + slot corner joints.
CE-certified version
Basic machine in the strongest welded frame construction, with thick-walled special hollow profiles.
Guideways for the pressure beams for the press corners in a low-wear machined design.
Fast, smooth, manual width adjustment via ball-bearing carriages, fixed in a hole pattern.

Height adjustment and pressing via long-stroke cylinders in a single work cycle. Right-side press corners with
integrated horizontal cylinders, therefore no vertical positioning of the horizontal pressure cylinders necessary, thus avoiding cylinder collisions.
Lower abutment adjustable in several positions for the most favorable insertion height.
3 vertical press cylinders, double-acting, stroke adjusted to working height
2 horizontal press cylinders, double-acting
Abutment and pressure plate depth 80 mm

Working size: Length x Height = approx. 3,600 mm x 2,600 mm
Space requirement/loading dimensions: approx. 4,400 mm x 1,150 mm x 2,970 mm (Length x Width x Height)

Option:
ALWA pressing supports for sloped windows
