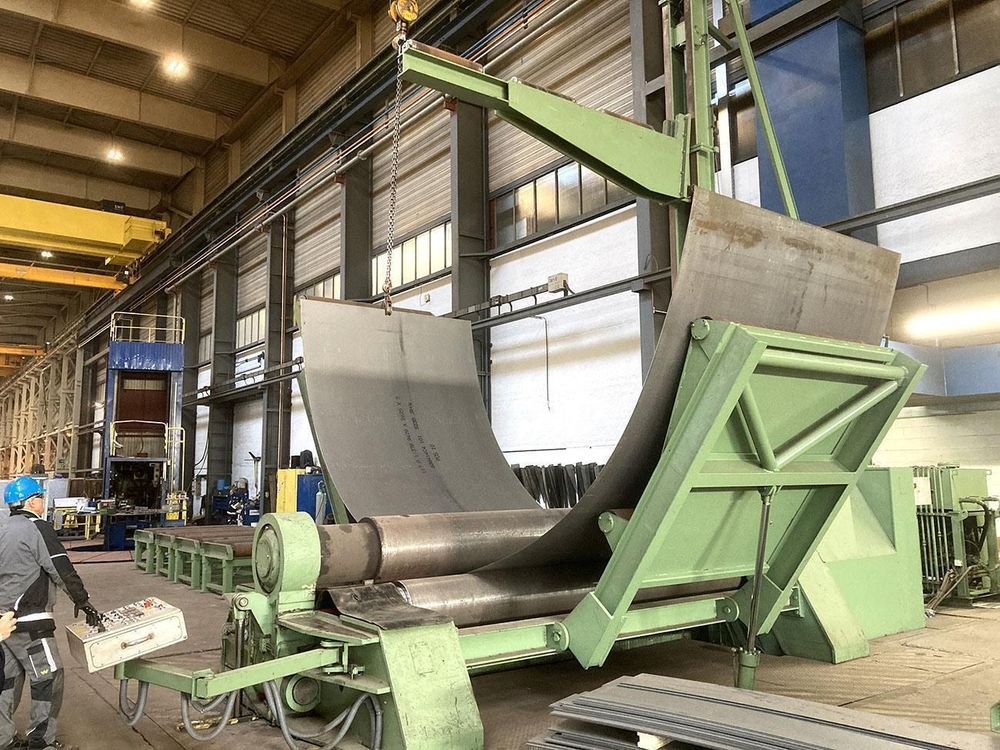

Schafer SVRM 4050 x 40/50/60 mm

Ref : 2779562-3-CP

Condition : Used

Manufacturer : Schafer

Model : SVRM 4050 x 40/50/60 mm

Year(s) : -

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Roll Capacity Cold: 4050 x 40/50/60 mm
Number of Rolls: 4
Upper Roll Diameter: 560 mm
Driven Rolls: 4 hydraulically driven rolls
Power: 110 kW
Weight: 72 ton
Pre-bending: yes
Type: SVRM 4R - Linear
4 rolls individually hydraulically driven
4 hardened rolls
6 digital readouts
Conical bending
Smallest cone diameter: 1100 mm
Hydraulic crowning of top roll
Maximum speed: 7.5 m/min
Linear guides for side rolls
Backload feature with tilting cylinder connected to top roll
Shock absorber system
Increased pre-bending capacity factor: 1.8
Simultaneous hydraulic movements during rolling
2 hydraulic plate support systems
Hydraulic vertical top support
Maximum workpiece diameter with top support: 6300 mm
