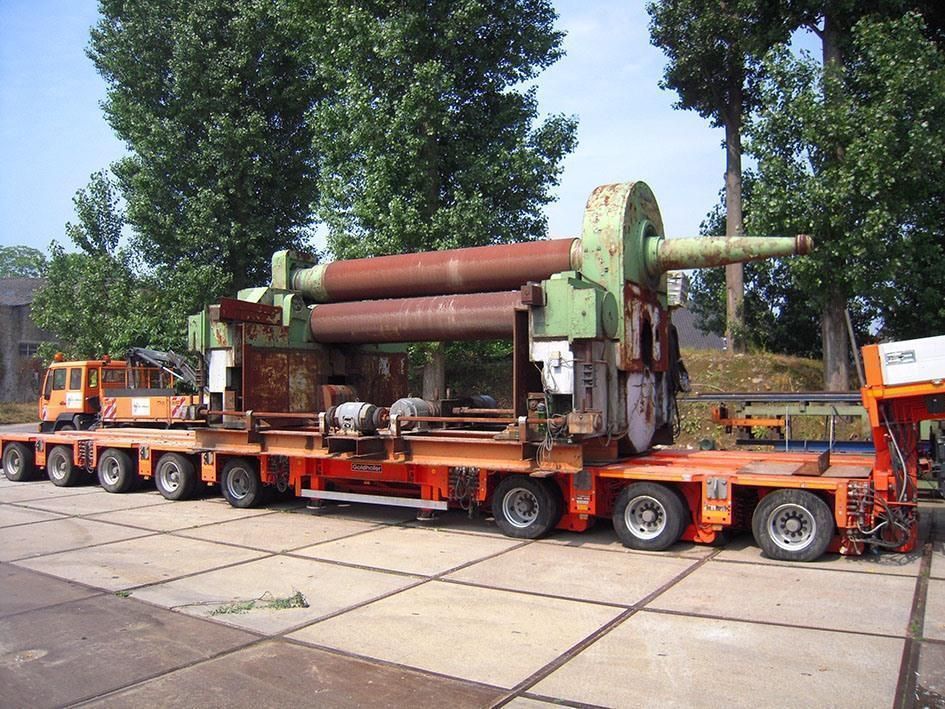

Scharringhausen DBR 4000x40/60mm

Number of rolls: 3
Roll capacity (cold): 4000 x 40 / 60 mm
Pre-bending: Yes
Upper roll diameter: Ø 570 mm
Lower roll diameter: Ø 520 mm
Side roll diameter: Ø 520 mm
Lower rolls individually movable
Capacity: 4000 x 40 mm at rolling Ø 1000 mm
Capacity: 2500 x 60 mm at rolling Ø 1000 mm
Capacity: 3000 x 60 mm at rolling Ø 2000 mm
Main roll power: 80 kW
Side rolls power: 30 kW
Machine length: 9000 mm
Machine depth: 4500 mm
Machine height: 3600 mm
Gearbox dimensions: 4000 x 2000 x 3000 mm
Machine weight: 62 ton
Chassis weight: approx. 18 ton
Rolls weight: approx. 30 ton
Gearbox weight: 14 ton
