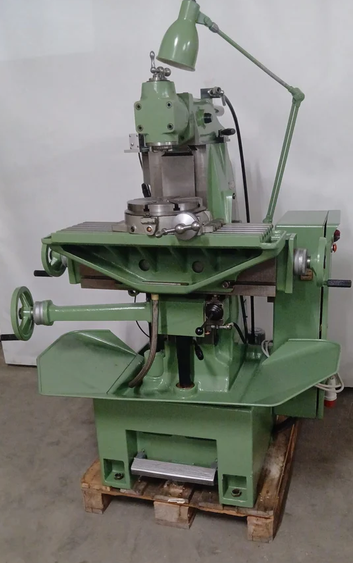

Schaublin 13 Vertical 2,000 RPM (stepless)

Table: 600 × 210 mm
X-axis travel: 260 mm
Y-axis travel: 150 mm
Z-axis travel: 310 mm
Distance from vertical spindle to table: 310 mm
Distance from horizontal spindle to table: 410 mm
Spindle speed: 58–2,000 RPM (stepless)
Spindle taper: ISO 30
Feed steps: 10
Longitudinal feed: 12–400 mm/min
Vertical feed: 12–400 mm/min
Rapid longitudinal traverse: 1.2 m/min
Rapid transverse traverse: 1.2 m/min
Voltage: 380 V, 3 Phase, 50 Hz
Motor power: 2.0 CV
Total power: 3.0 CV
Machine weight: 700 kg
Machine dimensions: 1100 × 1000 × 1550 mm
Dividing attachment
Dividing attachment center height: 105 mm
Vice
Set of toolholders
Lamp
