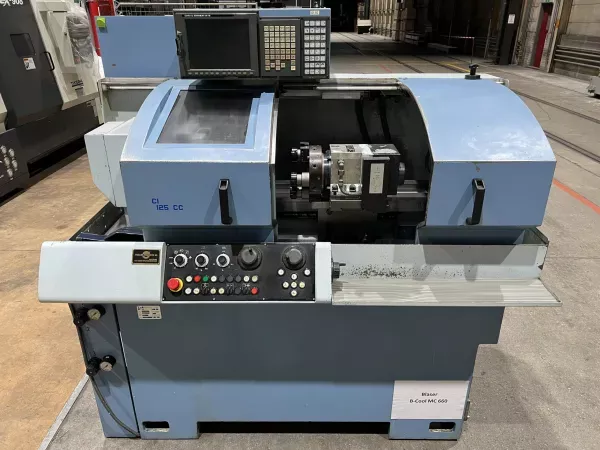

Schaublin CNC CONTROL 5000 rpm 125 CCN LATHE 2 Axis

Ref : 2750185-3-AW

Condition : Used

Manufacturer : Schaublin

Controller : CNC CONTROL

Spindle Speed : 5000 rpm

Model : 125 CCN LATHE

Nb Of Axis : 2 Axis

Year(s) : -

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

X-Axis Travel 180 mm
X-Axis Resolution 0.0005 mm
Z-Axis Travel 400 mm
Z-Axis Resolution 0.001 mm
Feedrate 0–5000 mm/min
Feed Force 500 daN
Rapid Traverse 7.5 m/min
Maximum Turning Diameter 270 mm
Maximum Turning Diameter with Turret 200 mm
Maximum Turning Diameter with Collet B32 24 mm
Spindle Speed 30–5000 rpm
Motor Power 5.5 / 7.5 kW
Turret Positions 8
Tool Holder Type VDI 20
Tool Size 16 x 16 mm
Machine Dimensions 1697 x 1236 x 1658 mm
Machine Weight 1415 kg
