Schechtl MA 250/1

SCHECHTL MA 250/1
Year: 1998

sheet width: 2520 mm
plate thickness (steel): 1.50 mm
plate thickness (aluminum): 2.50 mm
thickness at "Niro-steel": 0.75 mm
bending angle max.: 180°
bending speed: 5.5 sec/stroke
daylight: 215 mm
upper clamping bar adjustment: 120 mm
adjustment folding beam: 25.0 mm
engine output: 1.12 kW
weight: 1620 kg
dimensions (L x W x H): 2760 x 1050 x 1060 mm

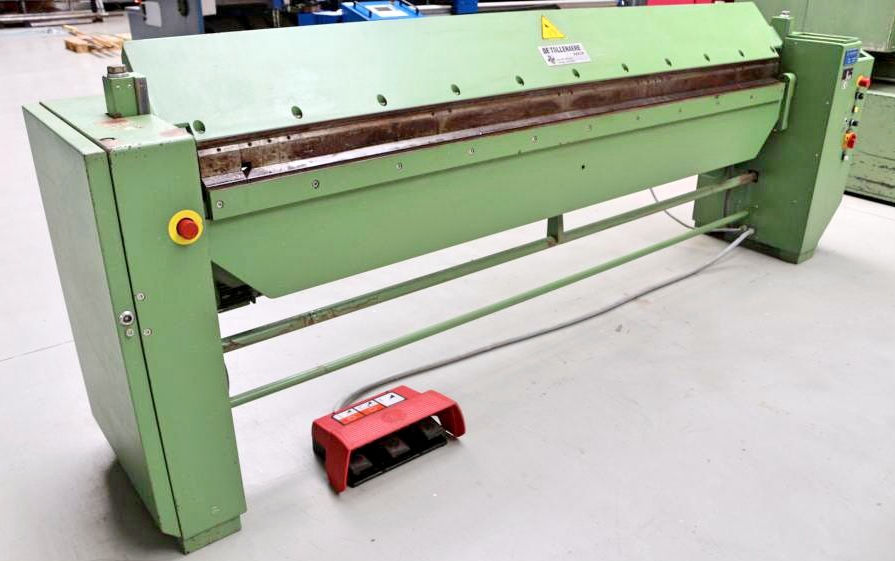

Electric-driven folding machine
Bending angle adjustment via electric potentiometer
Used split set of goat's foot tools (H = 80.0 mm)
2 used upper tool rails (pointed and radius rails)
2 used bending rails (10.0 mm and 25.0 mm)
Manual lower beam adjustment
Freely movable foot control (3 positions)
Manual backgauge with mm scale
Backgauge max. travel 500 mm
Backgauge adjustment from rear with handwheel
2 emergency stop buttons at the front
Operating instructions (PDF)
