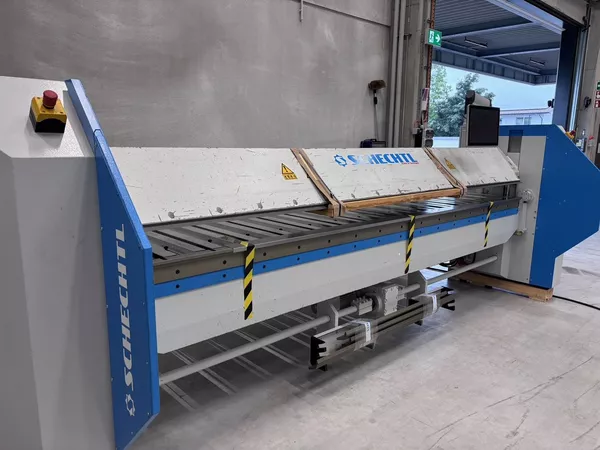

Schechtl MAF 400

Working length: 4040 mm
Max sheet thickness (steel): 1.5 mm
Max sheet thickness (aluminum): 2.00 mm
Max sheet thickness (stainless steel): 1.00 mm
Upper beam lift (opening width): 140 mm
Back gauge (max): 1000 mm
Back gauge (min): 8 mm
Sheet thickness adjustment: lowering of bending beam
Total power requirement: 400 V
Machine dimensions (L×W×H): 5325 × 2232 × 1924 mm
Machine weight: 5000 kg
Color: blue/gray
Control: CNC S-Touch

Sharp rail 20°, cranked, radius 1 mm for upper beam
Insert rail 10/100 mm for bending beam
Insert rail 24/100 mm for bending beam
Two foot pedals for two-operator control
S-Touch control with graphical profile display
21.5" LCD touch color monitor with high-resolution graphics
Motorized back gauge 8–1000 mm
F-Geometry design
32 A plug connection with 5 m cable
Machine repaired, inspected, cleaned, and fully functional
Test run performed
