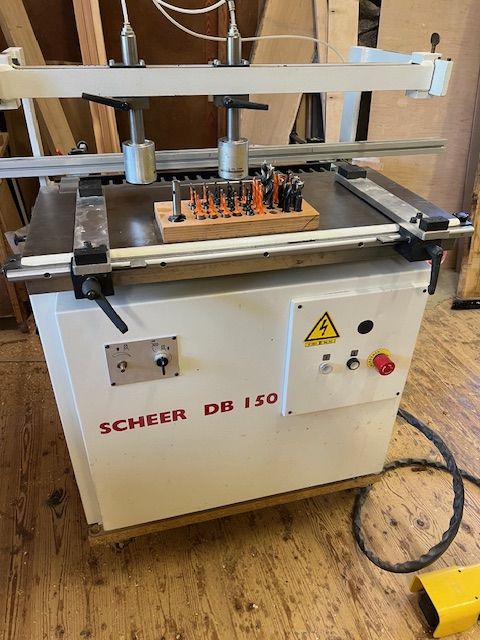

Scheer DB 150

Dowel drilling machine
Equipment and technical specifications:
For handcrafted production or as a standby machine in CNC operation,
universal machine for drilling cabinet parts and for machining corner joints, frame joints, surface-side holes, holes for cabinet fittings, etc.

- Drilling unit kW 1.84 volts 230/300 Hz 50 rpm 2840
- Number of spindles: 21
- Spindle pitch mm 32/32
- Max. spindle spacing mm 640
- Spindle rotation direction 11 x right / 10 x left
- Drilling stroke mm max. 80
- Drilling depth with 80 mm drill bit max. 45 mm with 105 mm drill bit max. 70 mm
- Height adjustment mm 4 - 43
- Workpiece clamping 2 safety clamps
- Clamping height mm max. 90
- Portal clearance mm max. 740
- Pneumatic control with foot valve Electrically operated intermittently -
- Table size: 880 x 400 mm
Shipping dimensions: 150 x 110 x 150 cm
Weight: approx. 340 kg
