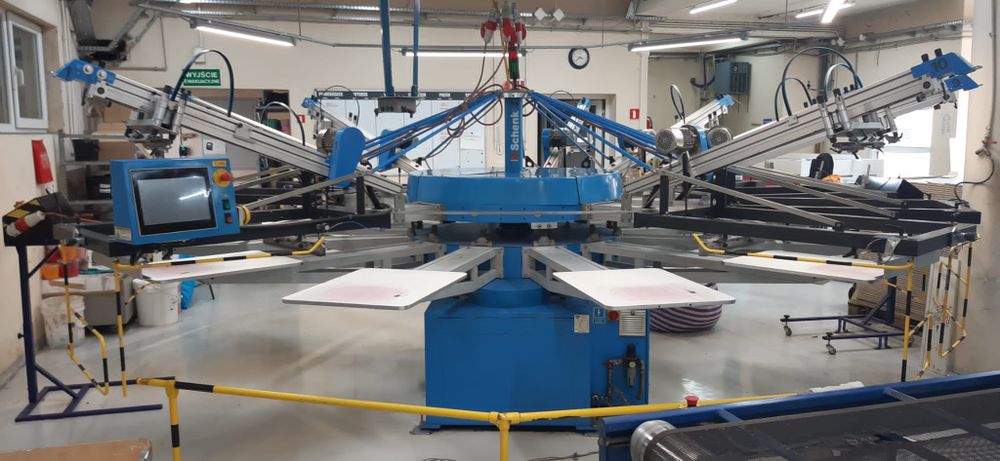

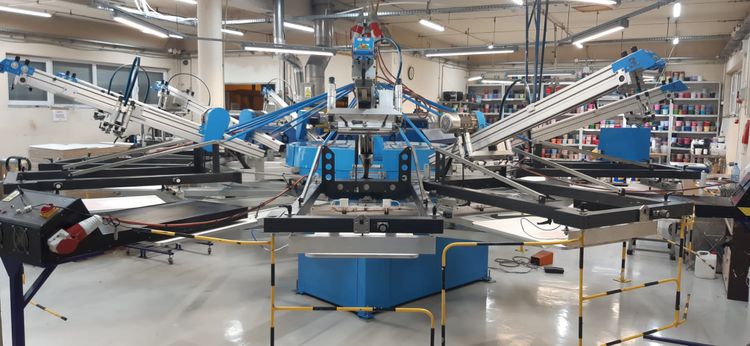

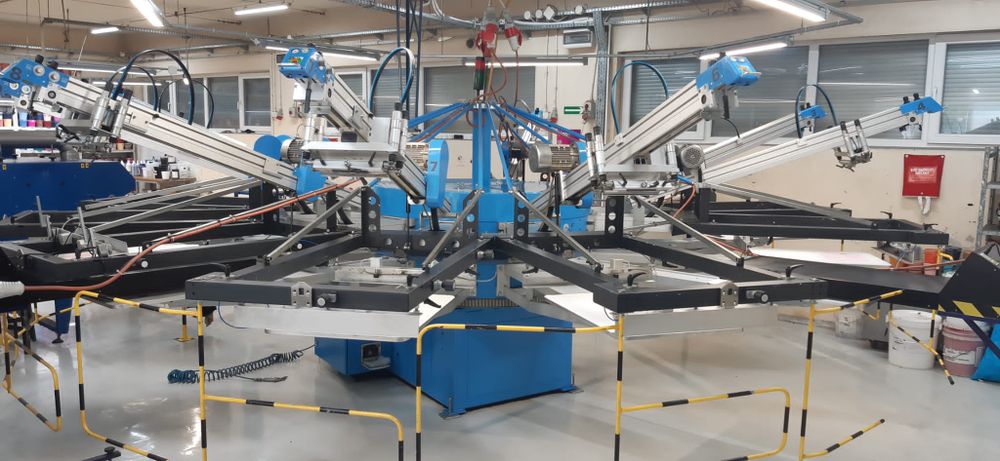

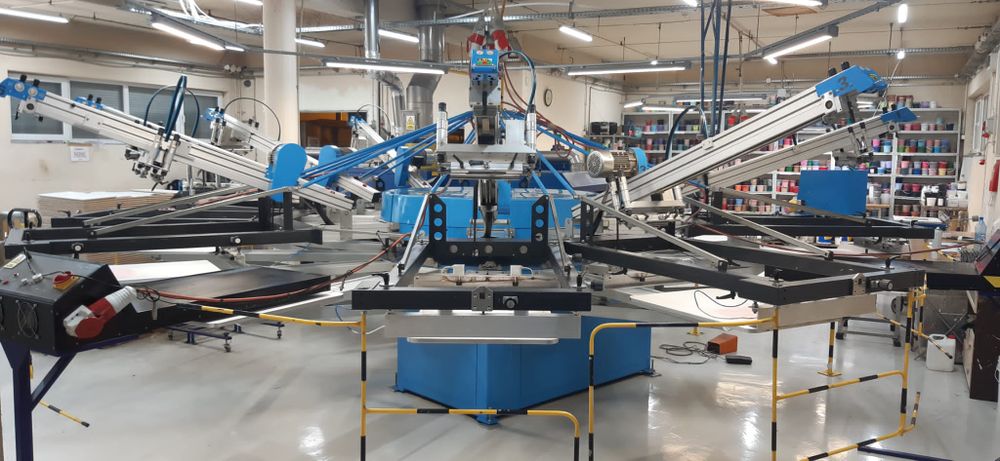

Schenk Variprint SPIDER V2002 rotary carousel printer

SCHENK - CAROUSEL PRINTER VARIPRINT
SPIDER V2002 TYPE EX 8/12 ER
- electric servo rotary drive
- electric servo lift drive for screen relative
to the pallet
- electric servo squeegee carriage drive

1. Specifications:
• production year: 2012
• 12 stations (pallets)
• 10 automatic printing mechanisms
• print format: 600 x 850 mm (1100 x 850
mm with double indexing)
• machine diameter: 5,760 mm
• 15 aluminum sandwich pallets:
420 x 700 mm
• 12 aluminum sandwich pallets:
550 x 750 mm
• 12 squeegees: 400 mm with 40 x 8 mm
rubber, 65/800 Shore

2. Power Requirements:
• electrical: 400V, 50/60 Hz, 16A
• compressed air: 8 bar, approx. 3m³/h
per printing mechanism

3. Standard Features:

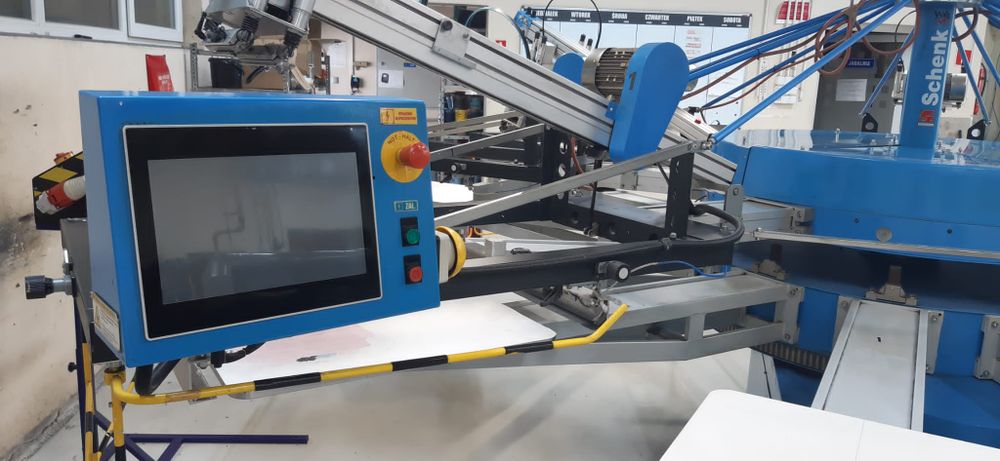

• 13” TOUCHSCREEN display
• microprocessor control
• 6 basic programs tailored for printing with
plastisol inks, water-based inks, and HD
printing. Program for pallet heating.
• electric lift system – allows electronic
adjustment of the distance between the
pallet and the screen from the control
panel
• HD Program – e.g., for high-build
printing
• function for printing eco-friendly bags
• excess ink removal function
• pallet rotation functions: 1/2 and
double indexing
• independent adjustment of screen-to-
pallet distance for each printing station
• mini controls on each printing arm
precision screen alignment system
with scale markings
• printing accuracy: +/- 0.025 mm
• pneumatic adjustment of squeegee
pressure (printing/flooding)
• SKIP function to skip pallets with
improperly placed items
• “Replay” program – allows repeated
intermediate drying of a base coat using
a single dryer
• “MIX” program – enables automatic arm
selection and setting screen-to-pallet
distances programmed over four rotations
• accelerated Program 3 for multiple
printing:
• program for transfer printing
(pendulum mode for 3 pallets)
• variable pallet rotation direction
(right/left)
• ability to program each arm with a
different printing program
• liftable printing arms: so-called open
station

4. Additional Features:
• side screen loading
• pneumatic and manual screen locking
• manual adjustment of squeegee angle
• printing speed: up to 1,000 cycles/hour

Additionally: flashline dryer - 3 pcs.

Price based on FCA.
