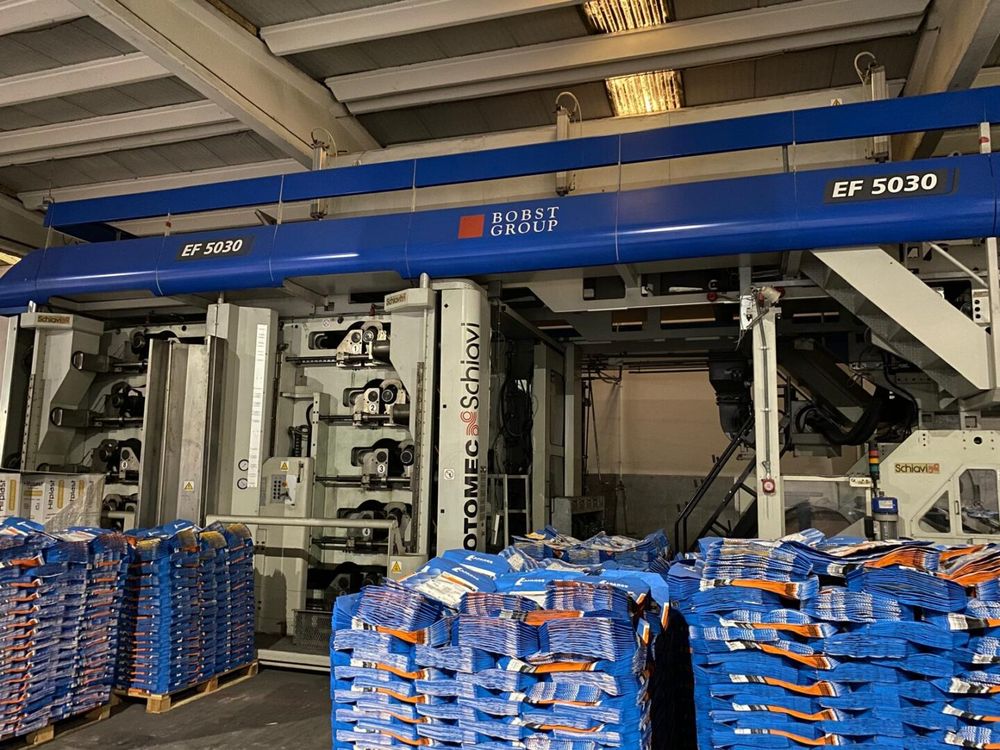

Schiavi EF 5030 10 1430 mm

Condition : Good
Number of Colours: 10
Printing Configuration: 10+0
Refurbishment: Completely refurbished
Gearless System: Yes
Quick Sleeve Change: Yes
4-Motor CNC Positioning System per Deck: Yes
Computer Control: Yes
Web Width: 1430 mm
Printing Width: 1400 mm
Minimum Print Repeat: 400 mm
Maximum Print Repeat: 1220 mm
Unwinder Type: Turret with flying splice
Maximum Unwinder Roll Diameter: 1000 mm
Rewinder Type: Turret with flying splice
Maximum Rewinder Roll Diameter: 1000 mm
Drying System: 2 gas burners, 2 automatic temperature controls
Maximum air temperature: 140°C, 10 inter-colour drying boxes
Final drying tunnel: 5 m length with 12 blowing nozzles, 2 fans, 1 air inlet and 1 air outlet

Video Camera System: BST Super Handy Scan
Corona Unit: 1 x Mero Corona treatment system
Web Guides: Fife
Viscosity Control: 10 x Visco Celio VC 1550S
Ink System: 10 electric pumps with ink tanks
Anilox: 18 ceramic anilox rollers
Printing Sleeves: 150 pcs
Materials: BOPP, PET, LDPE, PA, paper
Maximum Speed: 500 m/min
Web Feeding Section: Guide rollers, OPG edge guide, nip roller, banana roller.
There are 160 sleeves in various sizes
