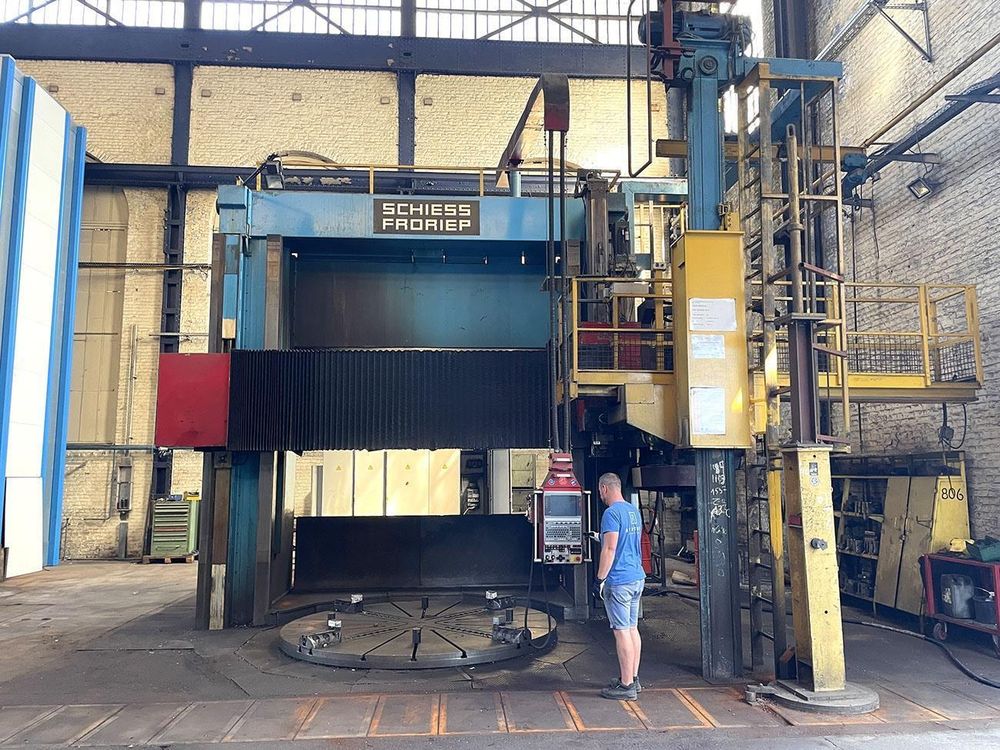

Schiess 32 DZ Ø 4020 x 3420 mm CNC

Ref : 2738812-3-CP

Condition : Used

Manufacturer : Schiess

Model : 32 DZ

Short Description : Ø 4020 x 3420 mm CNC

Year(s) : -

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Horizontal table lathe with two uprights
Suitable for all types of turning work
Heidenhain linear scale
Tool holder can tilt 30° left and right
Tool changer with 12 tool positions

Table diameter: 3000 mm
Maximum load: 44 ton
Table speed: 1–10 rpm
Maximum transmissible torque to table: 10000 kpm
Cutting force on carriage: 5000 kp
Power: 75 kW
CNC control: BOSCH (Ball-screw)

Horizontal displacement of tool holder from center of table: 2510 mm
Vertical displacement of crossbar: 1600 mm
Vertical stroke of tool holder: 1600 mm
Maximum height of workpiece: 3420 mm
Maximum diameter of workpiece: 4020 mm
