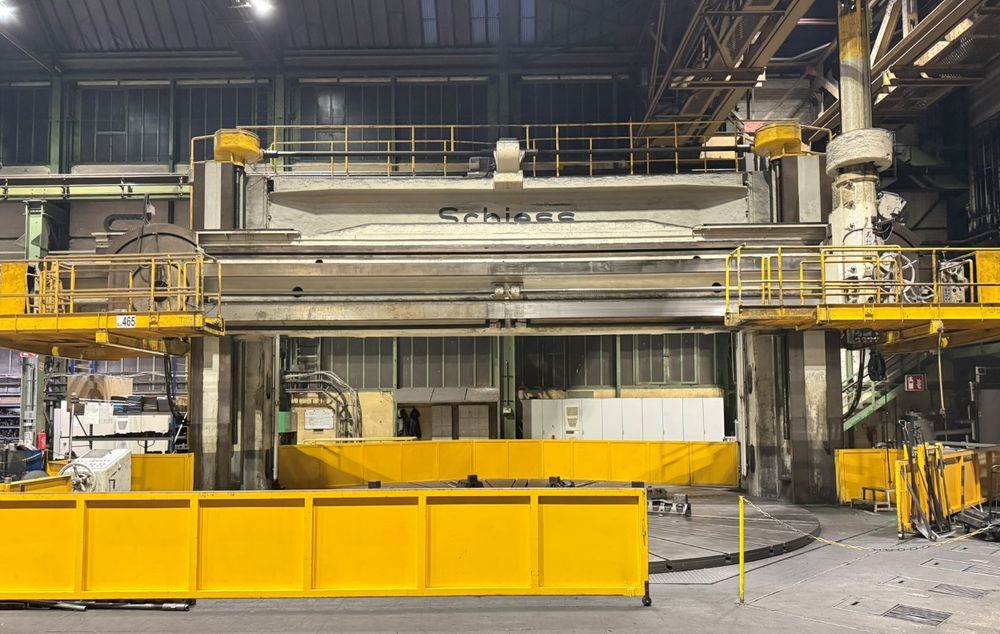

Schiess VTL Chuck diameter 9500 mm

Ref : 2763069-3-GO

Condition : Used

Manufacturer : Schiess

Model : VTL

Short Description : Chuck diameter 9500 mm

Year(s) : -

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Control Conventional
Max turning diameter 10500 mm
Max turning height 4500 mm
Ram travel vertical 2000 mm
Chuck motor 112 kW AC
Chuck speed up to 7.35 rpm
Max table load 120 tonnes (possible up to 150 tonnes)
Machine weight approx 400 tonnes

Machine equipped with
Under power
Chip conveyor
AC spindle motor and drive
Left ram dismantled but delivered with the machine
New electrics and overhauled chuck and chuck base in 2009
Main drive gearbox overhaul in 2021
